Operating Overview
Displaying Analog Measurements
Displaying AF Measurements
FM Deviation, AM Depth, AC Level
The AF Anl In setting determines the AF analyzer’s input and the
measurement displayed in the top-right corner of the measurement
area (see figure 2-4). These measurements are displayed on the RF
GENERATOR, RF ANALYZER, and AF ANALYZER screens.
Table 2-1 lists the measurement displayed for each AF Anl In setting.

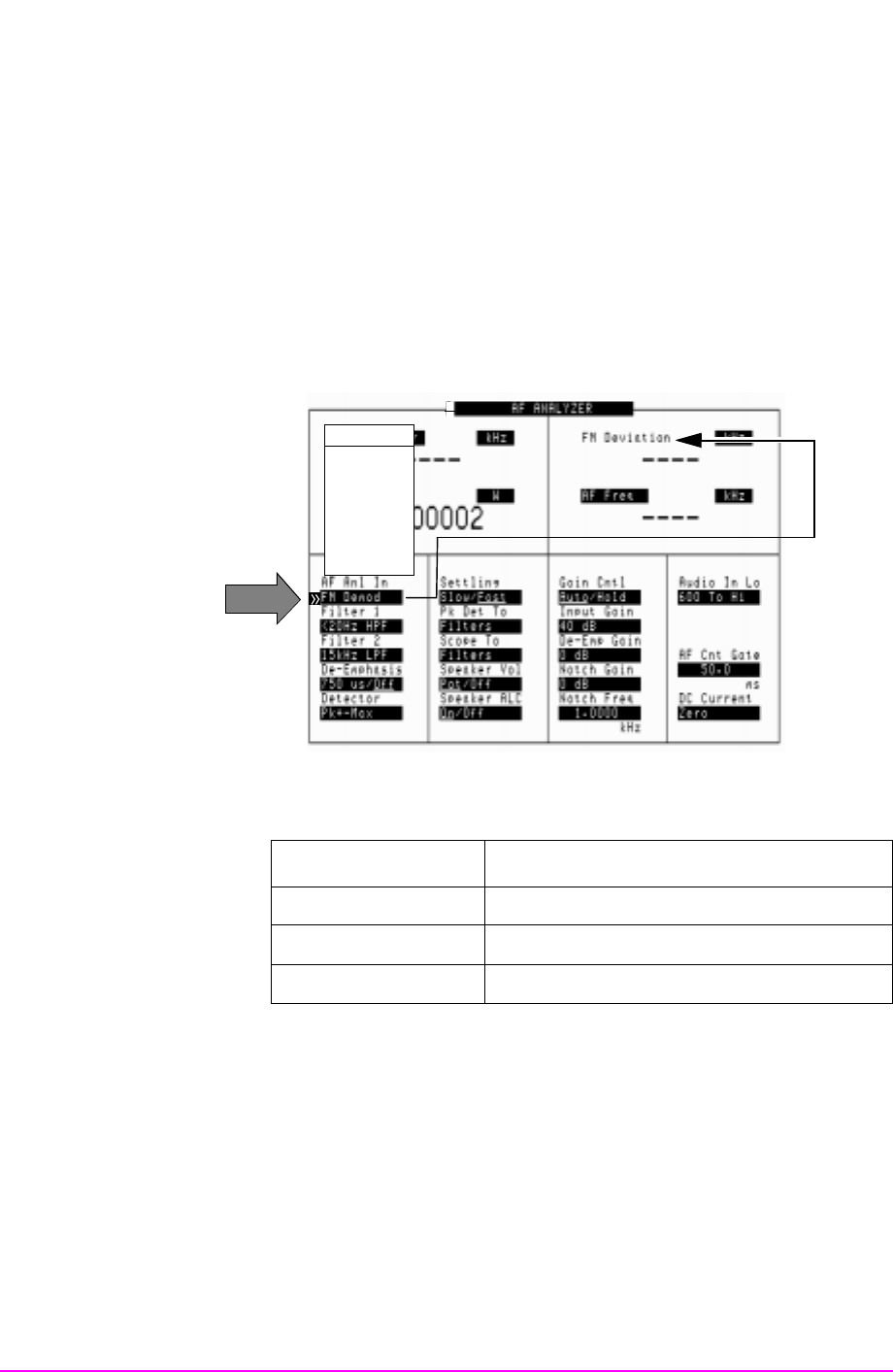

Figure 2-4 Displaying FM Deviation, AM Depth, or AC Level
Table 2-1 Measurements Selected with the AF Anl In field
Measurement AF Anl In Setting
FM Deviation FM Demod, FM Mod
AM Depth AM Demod, AM Mod
AC Level SSB Demod, Audio In, Ext Mod, Audio Out
Choices:
FM Demod
AM Demod
SSB Demod
Audio In
Ext Mod
FM Mod
AM Mod
