Chapter 3 57
Overview of the Test Set’s Built-In Tools
Using RF Tools Program

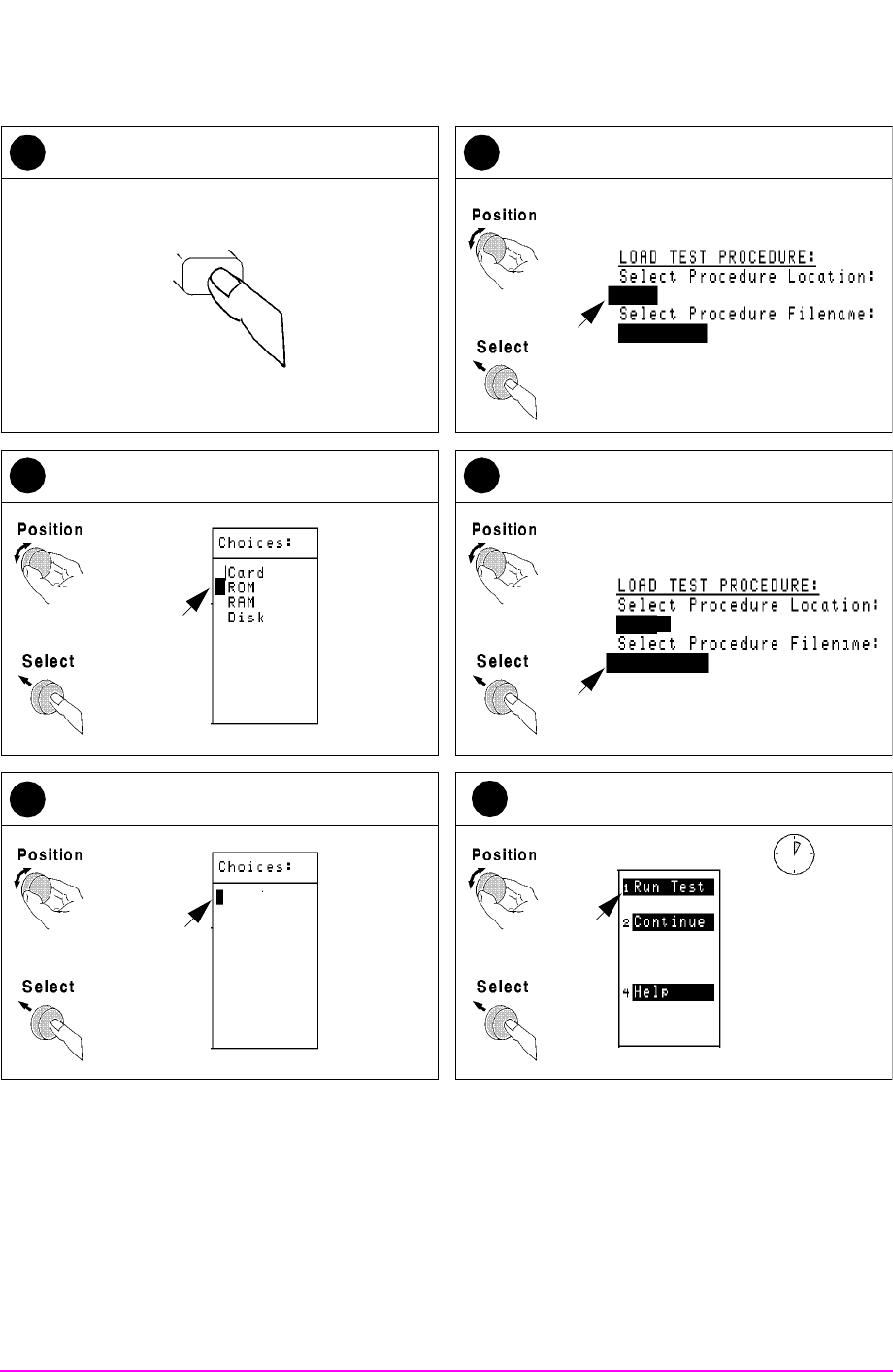

Figure 3-1 Loading and Running RF Tools
Position the cursor at Choices: and
select RFTOOLS.
Position the cursor at Run Test and
select it. The Software is now loading.
Position the cursor at Select Procedure
Filename: and select it.
Position the cursor at ROM and select it.
Press Menu to display the Software Menu
screen.
Position the cursor at Select Procedure
Location: and select it.
1
3 4
6
5
2
RFTOOLS
XXXXXX
YYYYYY
Loading Time:
First time:
approximately
three minutes.
After first time:
approximately
15 seconds.
ROM
Main Menu
