IIKKEELLIITTEE VVIIDDEEOO CCAASSEE
SSUUPPPPLLEEMMEENNTTAALL IINNSSTTRRUUCCTTIIOONNSS FFOORR
##66009900 CCaannoonn VVIIXXIIAA HHFF1100,, HHFF1111 HHFF110000
This supplemental set of instructions describes additional features specific to your
housing model. Prior to testing the system in the water, please read this supplement
along with the general instruction manual to become familiar with its features and
Ikelite Video Cases are slightly negative in salt water for stability. This housing has
been water pressure tested at the factory and has a working depth of 60m 200.

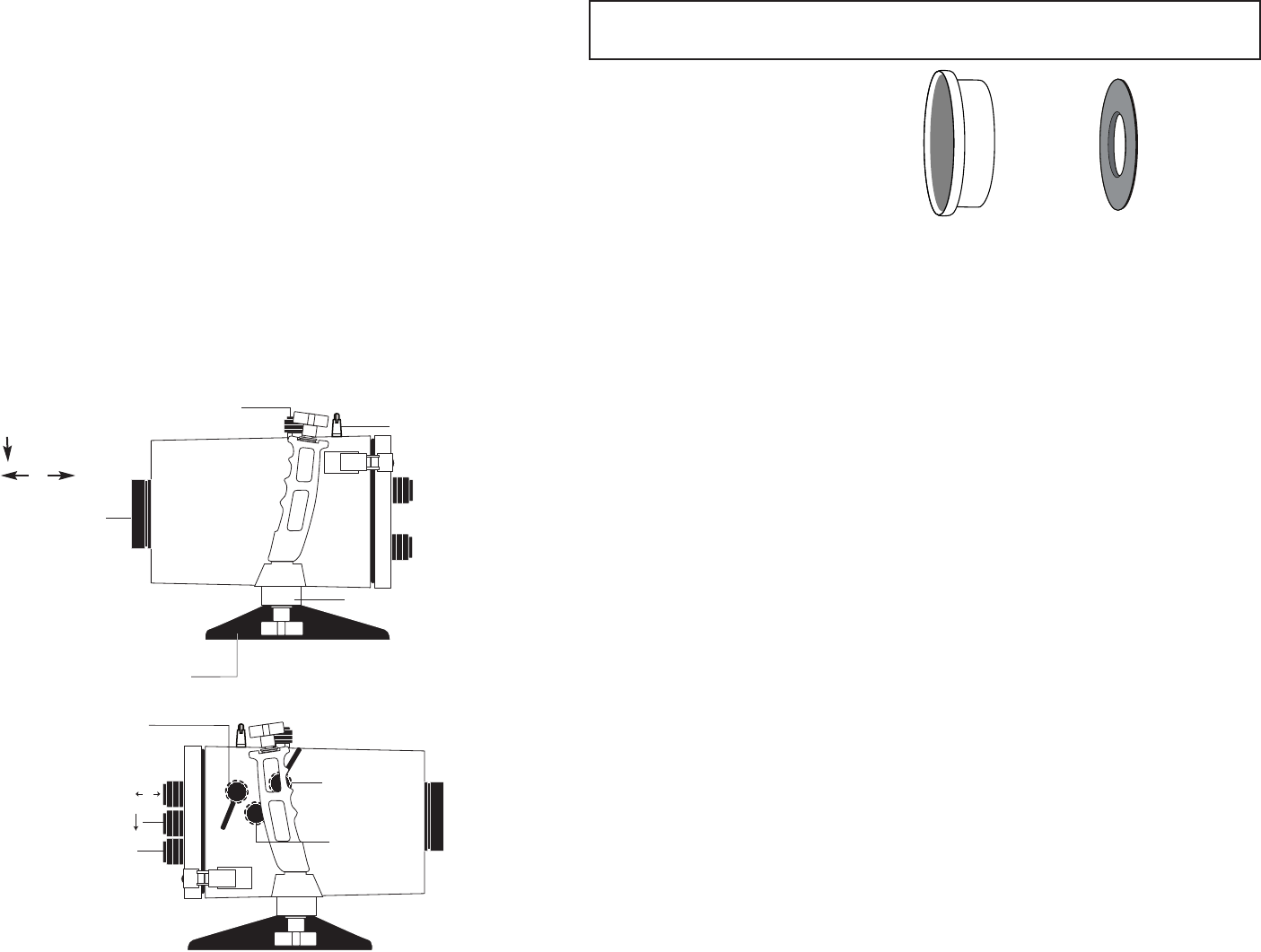

• Power On/Off
• Snap Shot
• Mode Dial Control
• Joy Stick
• Joy Stick
• Function Button
MMAAIINN OO--RRIINNGG ##00110099________________________________________________________________________________________________
O-rings last several years if properly maintained. Control seals should not need
to be replaced as long as the control shafts are kept clean and lightly lubricated.
Power On/Off Camera On
Zoom Lever Wide Angle Setting
Focus Auto Mode
PP RR EE PP AA RR AA TT II OO NN
PPAACCKKAAGGEEDD WWIITTHH HHOOUUSSIINNGG
• External UR/Pro Color Filter
• Silicone Lubricant
• Lens Shade
The installation and usage of the external UR/Pro color filter is described in the
general instruction manual.
OOPPTTIIOONNAALL WWIIDDEE AANNGGLLEE LLEENNSS
The housings port accepts optional 67mm threaded waterproof Wide-Angle lenses
such as the Ikelite #6420 W-20, Epoque DCL-20 and Inon UWL-100 Type 2. These
waterproof lenses secure to the outside of the lens port.
Should you elect to use an optional waterproof lens, carefully thread the lens on
the front of the lens port on the housing. The lens threads are very fine; DO NOT cross
thread. It should screw on very easily. If it is difficult to turn, you are cross threading.
NNGGLLEE LLEENNSS OOPPTTIIOONN ________________________________________________________________________
Special ports are available for use with the Raynox HD-5050 Pro high definition
wide-angle lens. optional ports sold separately as dome port #9304 or flat lens port
#9304.1. Raynox HD-5050 Pro lens not included. Lens
available for purchase
LLCCDD MMOONNIITTOORR // EEXXTTEERRNNAALL MMIIRRRROORR
The cameras LCD monitor can be viewed thru the rear of the housing. Open the
LCD monitor on the camera. Once the camera is secured to the camera tray, press the
LCD screen against the shade secured to the back of the housing.
BBAATTTTEERRYY AANNDD TTAAPPEE
Install a fully charged Canon battery on the camera:
Other brand batteries may not fit inside the housing. If the battery selected overhangs
the camera tray, then the battery is too large and will cause the housing to leak.
Make sure you have loaded an appropriate digital cassette tape in the camera.
Remove the lens cap, lens hood and cord from the camera. Otherwise, they may
interfere with the housing seal.
The cameras auto focus feature is utilized underwater. For best results, move in close
to your subject and use the wide angle range to shoot thru as little water as possible. The
full zoom range is accessible underwater.
Chart shows recommended initial settings underwater.
