UUssiinngg FFllaasshh
UUssiinngg tthhee CCaammeerraa’’ss BBuuiilltt--iinn FFllaasshh..
If you do not have an external flash, the camera’s built-in flash
can be used. See Diffuser instructions.
NOTE: The camera’s built-in flash cannot be used with optional
Wide-angle lenses.
DDiiffffuusseerr aanndd DDeefflleeccttoorr IInnssttaallllaattiioonn

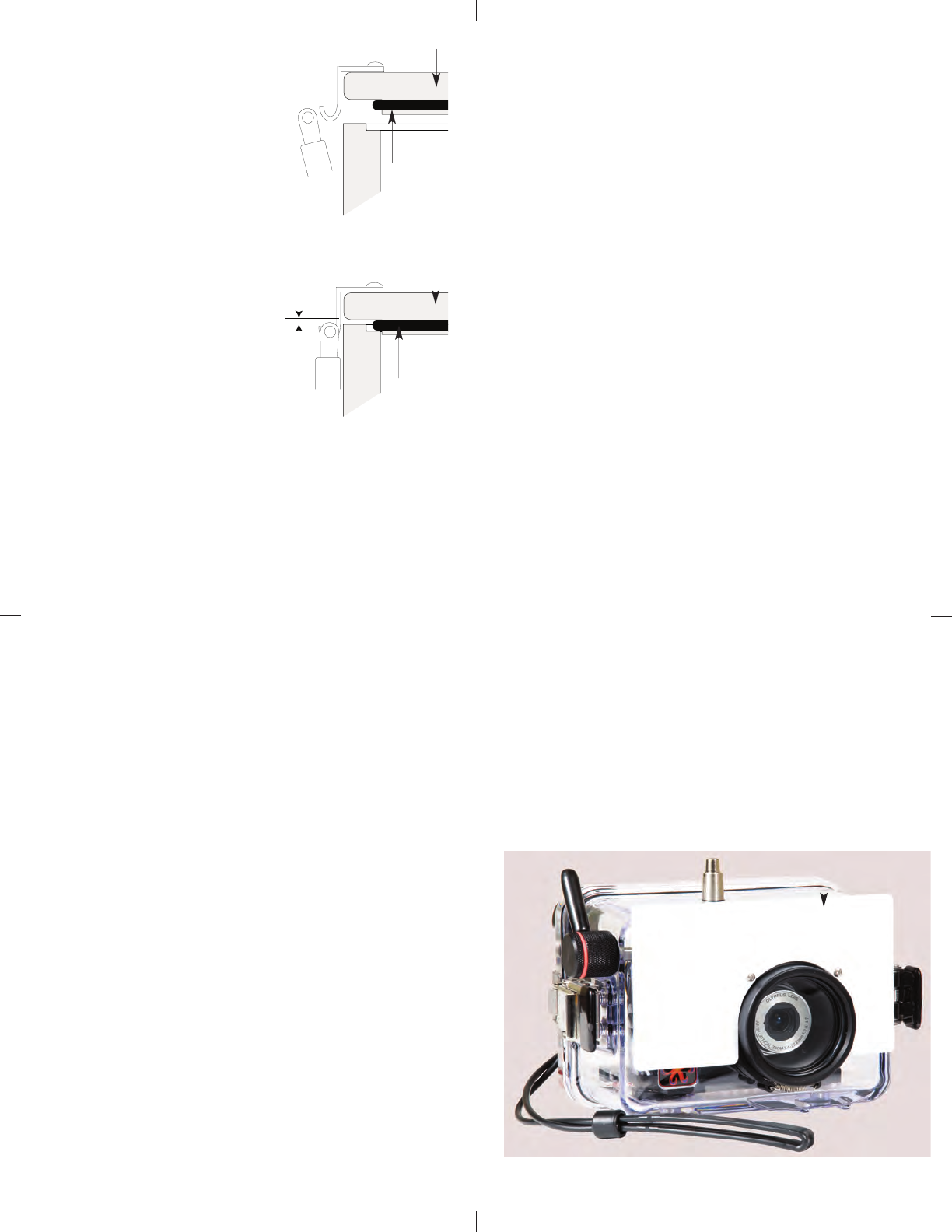

Housing shown with
Deflector installed.
Deflector
CClloossiinngg tthhee HHoouussiinngg
1. Place housing face down in your
lap or on flat surface.
2. Check to see that there is an
o-ring on the housing back and
that it is clean and in its proper
location.
3. Guide the back onto the housing.
The o-ring should touch the
housing all the way around. There
should be an even gap all the way
around between the housing and
the housing back.
4. Lift the lid snaps so they are
extended and place the lid
snap into the hook on the
housing back.
5. To close the housing push
down on the lid snaps until
they snap into place . Lid
snaps on opposite sides of the
housing should be closed at the
same time. Be sure they are down
far enough to engage the lock.
DDoouubbllee cchheecckk
- O
nce the housing is closed, check the o-ring seal.
Check the gap between the housing back and the housing, it
should be even all the way around.
Look through the clear plastic back at the o-ring. You should see
a darkened area where the o-ring is compressed against the
housing back. If you do not see an even black compression seal
all the way around the back, open the lid snaps, reseat the
housing back and close the lid snaps. Visually check the seal again.
o-ring
housing back
housing back
o-ring
even gap
all 4 sides
5
6
CChheecckkiinngg CCoonnttrroollss
Once the housing has been closed, make sure the housing controls
line up with the camera’s controls. If the housing controls are
misaligned slightly make sure the camera hold down bolt has been
tightened down firmly so the camera is flat against the tray.
TTuurrnn CCaammeerraa OOnn
Turn the camera on and operate each of the housing controls to
get a feel for using the camera in the housing. Take a few pictures
above water with the camera in the housing.
LLuubbrriiccaannttss
1. Ikelite provides silicone lubricant with the housing. We recommend
you use only Ikelite lubricant on Ikelite products as some other
brands may cause the o-ring to swell and not seal properly.
2. Use only enough lubricant to lightly cover control shafts and
o-rings. Wipe off any excess lubricant with a clean cloth.
Lubricant is not a sealant, it is used to reduce friction. Excessive
lubricant can collect sand and dirt which may interfere with
proper sealing.
CCAAUUTTIIOONN
NNeevveerr uussee sspprraayy lluubbrriiccaannttss aass tthhee pprrooppeellllaanntt iinnggrreeddiieenntt ccaann
ccaauussee tthhee ppllaassttiicc hhoouussiinngg ttoo ccrraacckk..
7
