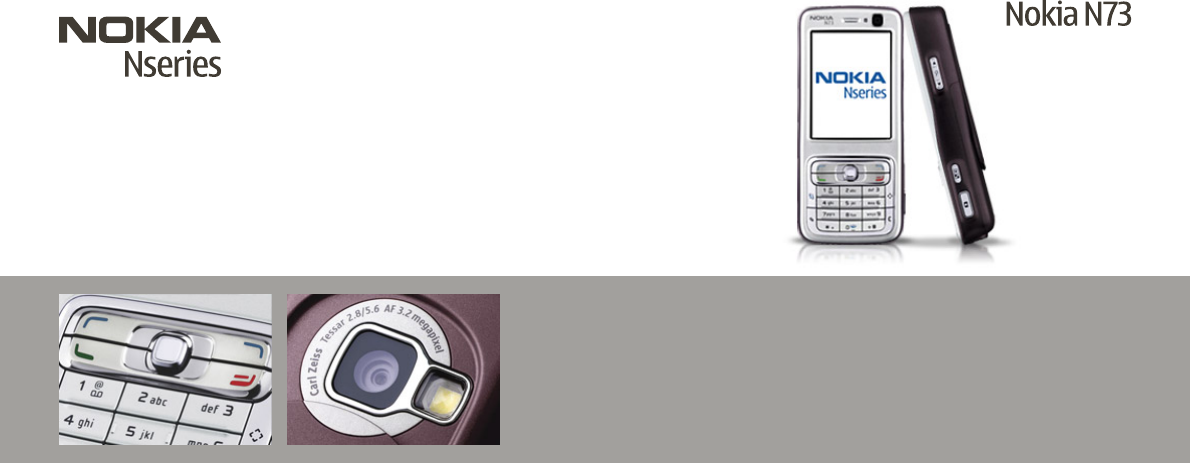

Nokia N73 Cell Phone User Manual



Features at a glance
3.2 megapixel camera with Carl Zeiss
optics
Large, bright 2.4-inch display
• Advanced auto-focus and mechanical
shutter
Stereo FM and support for Visual
Radio
Download and stream videos with
built-in RealPlayer
Operating Frequency
-Quadband EGSM 850 / 900 / 1800 / 190 MHz
- Dual mode
- WCDMA 2100 MHz
Dimensions
-Weight: 116 g
- Length: 110 mm
- Width: 49 mm
- Thickness (max): 19 mm
Display
-Up to 262,144 colors, 2.4 inch QVGA 240 x 320 pixels display
with automatic brightness control
User Interface
-S60 user interface 3rd Edition
- Active standby screen
- Multimedia key
- Ambient light detector - used to optimize display brightness
and power comsumption
Imaging
- 3.2 megapixel camera, (2048 x 1536 pixels) with up to
20x digital zoom
- Settings for night, brightness adjustment, image quality,
self-timer, white balance settings, and color tones
- On device photo editor and video editors (manual and
automatic)
-Camera Specifications
CMOS sensor, 3.2 megapixel, (2048 x1536 pixels)
with autofocus and digital zoom up to 20x
Carl Zeiss Optics, Tessar™'99 lens
Focal length 5.6 mm
Focus range 10 cm ~ infinity
Macro mode with 10 cm focus distance
Mechanical shutter with 1/1000~0.2s shutter speed
Active slide cover for lens protection
- Photography
2-stage capture key for autofocus control
2.4 inch camera viewfinder in landscape orientation
and with active toolbar
Slide for camera protection and activation
Integrated flash (operating range up to 1m)
Modes: auto, off, on, red-eye reduction
Advanced camera modes: still, sequence, video
Scenes: automatic, user defined, close-up, portrait,
landscape, sport and night
White balance: automatic, daylight, cloudy,
tungsten, fluorescent
Color tone: normal, sepia, B&W, vivid, negative
Light sensitivity: high, medium, low, automatic
-Video
Video: play, record, stream
Audio recording AAC stereo
Video stabilization
Video clip up to 1.5h (limited by available memory)
File format .mp4 (high), .3gp (normal, MMS)
Video capture: 352 x 288 (CIF) at up to 15 fps
MPEG-4
Automatic white balance control
Scenes: auto, night, close-up, snow/beach, cine,
old film
Digital zoom CIF up to 4x / QCIF up to 8x
Two-way video call capability
Second VGA camera, (640 x 480 pixels) with up to
2x digital zoom
Real time video sharing to another compatible
mobile device
Multimedia
-Visual Radio*: Listen to music and interact with your
favorite radio stations
Find out what song is playing, who sings it, and
other artist information
Enter contests and answer surveys, vote for your
favorite songs
Download the songs you buy direct to your phone
-RealPlayer Media Player
Download and play multimedia files (video and
music)
Stream media files from compatible media portals
Full-screen video playback on the phone to view
downloaded, streamed, or recorded video clips
in larger size
Played formats (decoding): MP3, AAC, Real Audio,
WAV, Nokia Ring Tones, AMR, AMR-WB, AMR-NB,
AU, MIDI, H.263, JPEG, JPEG2000, EXIF 2.2, GIF
87/89, PNG, BMP (W-BMP), MBM, MPEG-4 and eAAC+
- Digital music player for MP3/AAC/eAAC/eAAC+/WMA formats
with playlist and equalizer
- OMA DRM 2.0 support for music files
- Stereo FM radio (87.5 - 108 MHz / 76 - 90 MHz)**
- Integrated stereo speakers with 3D sound effect
*To check the availability and cost of the service, contact your
network operator or service provider
**Stereo sound can only be heard with a compatible stereo
headset
Memory Functions
- Up to 42 MB* internal dynamic memory for contacts, text
messages, multimedia messages, ringing tones, images,
video clips, calendar notes, to-do list and applications
- Options to expand up to 2 GB with miniSD card
*Changes to product details are possible without prior notice.
Application offering may vary. Dynamic memory means that
the available memory is shared between dynamic memory
functions. When any of these functions is used, there is less
available memory for other functions which are also dependent
on dynamic memory
Messaging
-Multimedia messaging: MMS for creating, receiving, editing,
and sending videos and pictures with AMR voice clips
- Email: Supports SMTP, POP3, IMAP4, and APOP protocols.
Support for attachments (view jpeg, 3gp, MP3, .ppt, .doc,
excel, and .pdf files)
- Text messaging: Supports concatenated SMS, picture
messaging, SMS distribution list
Java Applications
-Java™ MIDP 2.0, CLDC 1.1 (Connected Limited Device
Configuration (J2ME)) C++ and Java SDKs
Connectivity
-Pop-Port™'99 interface to USB 2.0
- Infrared (IR)
- Bluetooth 2.0
Browsing
-WAP* 2.0 xHTML/HTML multimode browser
*Please note that this service is operator dependent
Data Transfer*
- EGPRS, class B, multislot class 11 (UL/DL = 118.4/236.8
kbps)
- WCDMA 2100 with simultaneous voice and packet data
(PS max speed UL/DL= 128/384 kbps, CS max speed 64
kpbs)
- Dual transfer mode (DTM) support for simultaneous voice
and packet data connection in GSM/EDGE networks
- WCDMA packet data rates: UL 384kbps, DL 384kbps
- Circuit data to 64kbits/s for video call
- Speech codecs supported: FR, EFR, WCDMA, and GSM AMR
*Please note that these services require network support
Call Management
- Advanced contacts database with support for multiple
phone and e-mail details per contact
- Support thumbnail pictures and groups
- Speed dialing
- Logs: Keeps lists of your dialed, received, and missed calls
- Automatic redial
- Automatic answer (works with compatible headset or car
kit only)
- Fixed Dialing Number, allows calls only to predefined
numbers
Push to talk over Cellular (PoC)*
-Push to talk
*Please note that this service is operator dependent
Voice Features
-Voice dialing
- Voice commands
Personal Information Management (PIM)
- Advanced Series 60 PIM features including calendar,
contacts, to-do list, and PIM printing
For some moments, there are no words. But when life starts moving, the Nokia N73 has you
covered. Edit your photos and movies on the go. Upload instantly to Flickr. And with 3.2
megapixel of clarity and up to 20x digital zoom, there’s always enough time to let your images
do the talking. Life moves fast. Start shooting.
Nokia N73
