Congratulations on your purchase of an Ikelite Digital Camera
Housing. Ikelite has over 45 years of experience in the underwater
photographic and lighting market. Our products are designed and
built in the USA by Ikelite for both the professional and amateur
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens.
Ikelite Digital Housings are slightly negative in salt water for
stability. This housing has been water pressure tested at the
factory. Housing is pressure tested to 200' (60m).

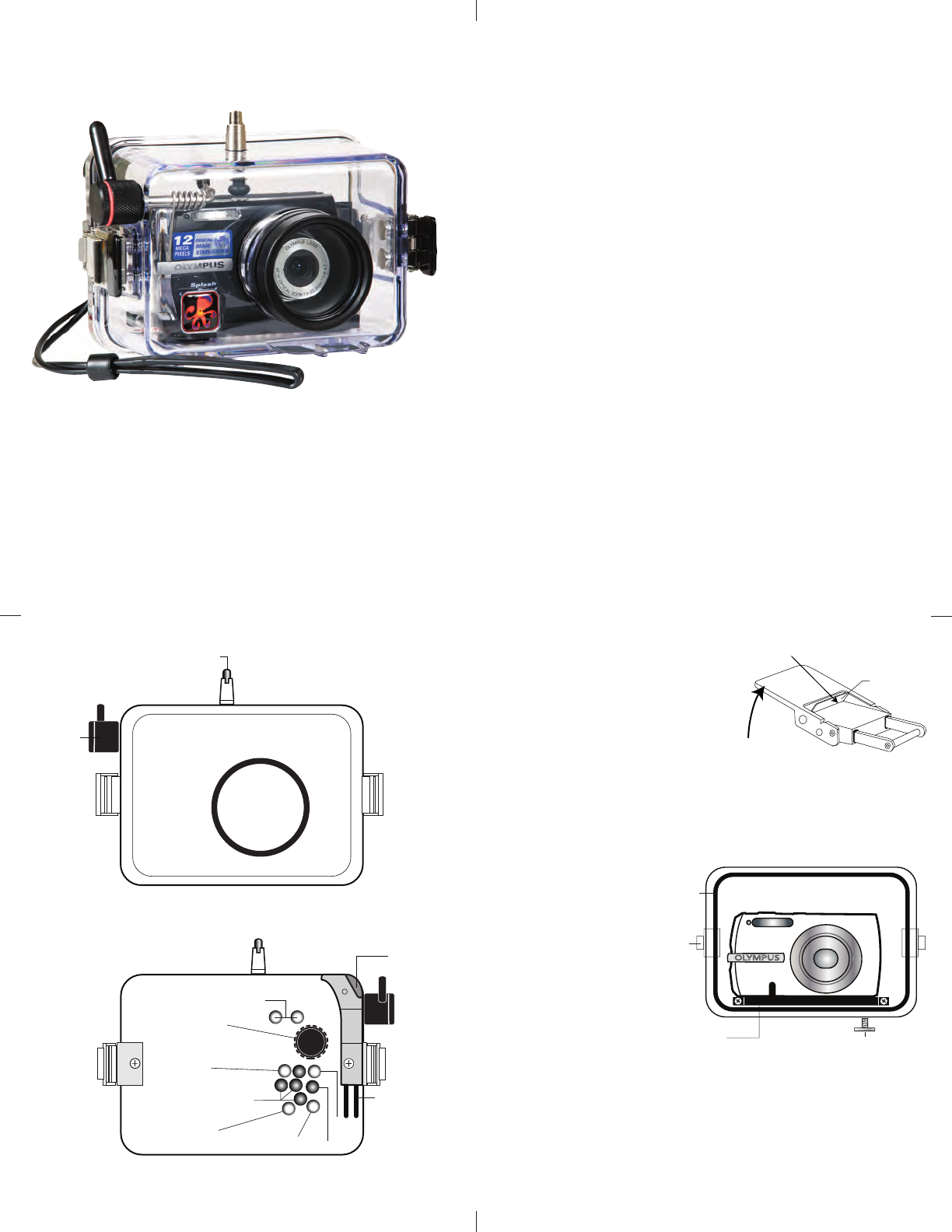

Ikelite Digital Housing
i n s t r u c t i o n m a n u a l
#6138.12 for Olympus Stylus 1200, Mju1200
We suggest that you read this instruction booklet thoroughly
before use. If you are new to underwater photography be sure
to read the General and Photo Tips.
We also suggest that you read the camera manual thoroughly
to have a full understanding of where each camera control is
located and what function each control provides.
PPlleeaassee RReeaadd IIff UUssiinngg aann EEVV--CCoonnttrroolllleerr
The EV-Controller used with Ikelite DS Substrobes have two
user settings. One setting is for strobe selection, the other is for
pre-flash or non pre-flash.
TThhiiss ccaammeerraa uusseess pprree--ffllaasshh
, thus the
EV-Controller should be set to the pre-flash position when used
with this camera.
Arrow Pad Buttons
OOppeenniinngg tthhee HHoouussiinngg
1. Lid Snaps have a
To open, push Lid Snap Lock
forward and lift as shown.
Keep pressure on the Lid Snap
so it does not fly
Some lid snaps have a lot
of spring tension once they go over center, have a firm grip
on the lid snap. Lid Snaps may be opened one at a time.
IInnssttaalllliinngg tthhee CCaammeerraa
1. Remove the back from the housing. The mounting tray for the
camera is secured to
the housing back.
Position the camera
on the tray and
secure it with the
mounting bolt which
threads into the
aa ccooiinn oorr ffllaatt bbllaaddeedd
ttiigghhtteenn tthhee mmoouunnttiinngg
bboolltt ssoo tthhee ccaammeerraa iiss
ffllaatt aaggaaiinnsstt tthhee ttrraayy..
Some camera tripod socket threads are plastic. The mounting
tray bolt is metal. Do not cross thread or over tighten as you
may damage the camera tripod socket threads.
CAMERA / MOUNT
Lid Snap Lock
