Description
Drive units
System frequency response
Amplifier
Low-Pass Filter
High-Pass Filter
Internal Volume
Dimensions
Net Weight
Finish

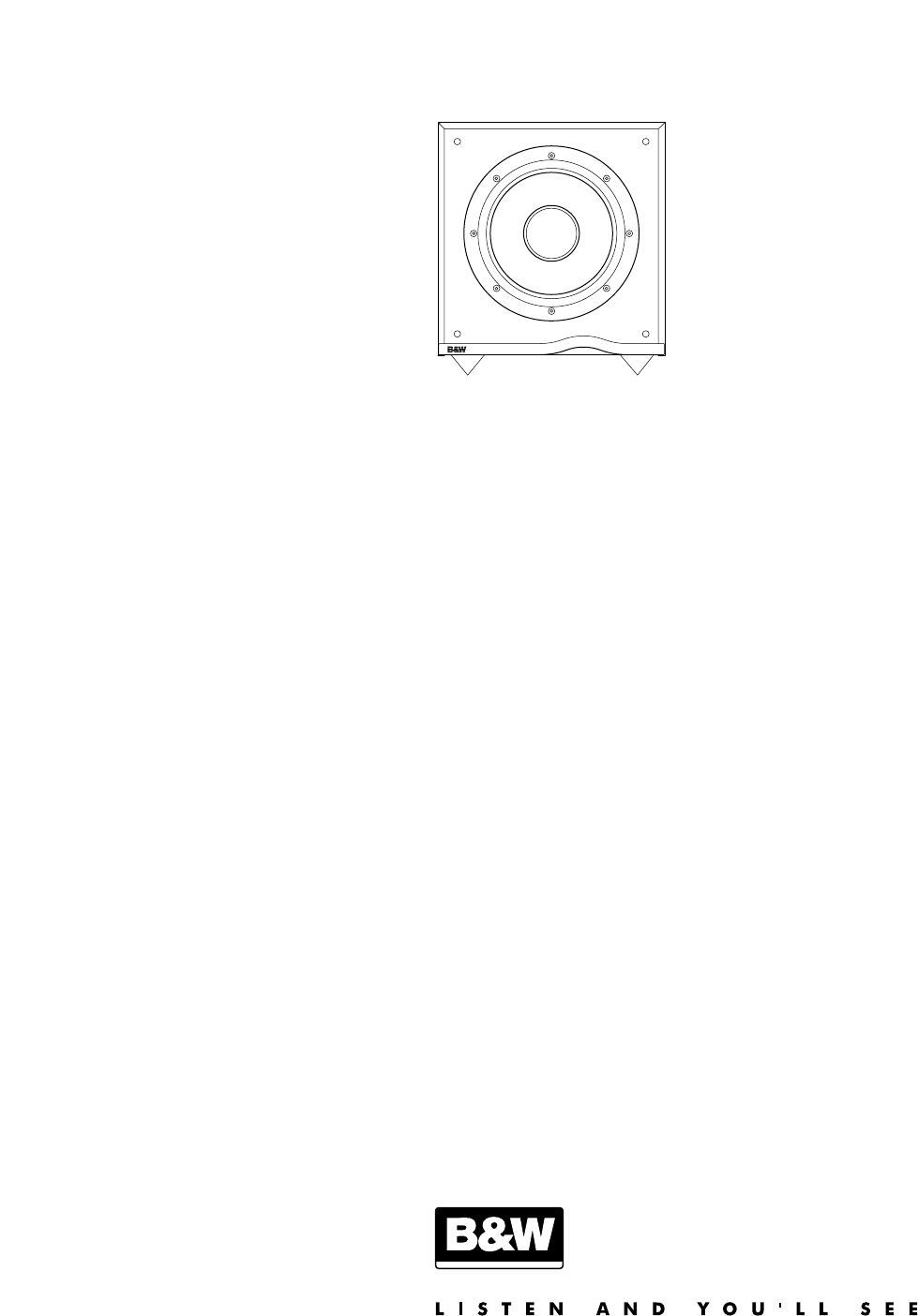

ASW
™
500
B&W Loudspeakers Ltd. reserves the right to amend details of the specification without notice in line with technical developments.
Copyright © B&W Loudspeakers Ltd. Printed in England.
B&W Loudspeakers Ltd, Meadow Road, Worthing, BN11 2RX Tel: +44 (0) 1903 524801 Fax: +44 (0) 1903 524725
http://www.bwspeakers.com
Active vented-box subwoofer system
One 250mm (10in) dia long-throw with pressed fibre
cone and magnetic shielding
-3dB at 32Hz and 80Hz
Discrete MOSFET
Power output: 70W continuous
Input Impedance: 22kΩ
Signal/Noise: 96dB
Functions: Input Level
Phase 0º/180º
Inputs: Line In (RCA Phono)
Speaker Level In (Spring Terminals)
Outputs: Line Out (RCA Phono)
Link Out (RCA Phono)
Speaker Level Out (Spring Terminals)
Active 2nd-order at 80Hz
Line Level: Passive 1st-order at 80Hz (47kΩ load)
Speaker Level: Passive 1st-order at 80Hz into 8Ω resistor
(Response of passive filters
dependent on load impedance)
35 litres (1.24 cu ft)
Height: 415mm (16.3 in)
Width: 353mm (13.9 in)
Depth: 401mm (15.8 in)
12kg (26.5lb)
Cabinet: Black Ash vinyl
Grille: Black
I5045
