OVERVIEW
5
Operating Systems
Your KVM Switch is for use on CPUs using:
Platforms
• Windows
®
98/2000/Me/XP, Mac
®
OS*, Linux
®
*
*with USB support
Keyboards
• Supports 101-/102-/104-/107-key USB keyboards
Mice
• USB-compatible USB mice with 2, 3, 4, or 5 buttons
Monitors
•VGA
• SVGA
• MultiSync
®
Microphone
• Multimedia microphone with 3.5mm connectors
Audio
• Multimedia speaker/stereo with 3.5mm connectors
Power Supply
• 9V 1A power supply required
Unit Display Diagrams

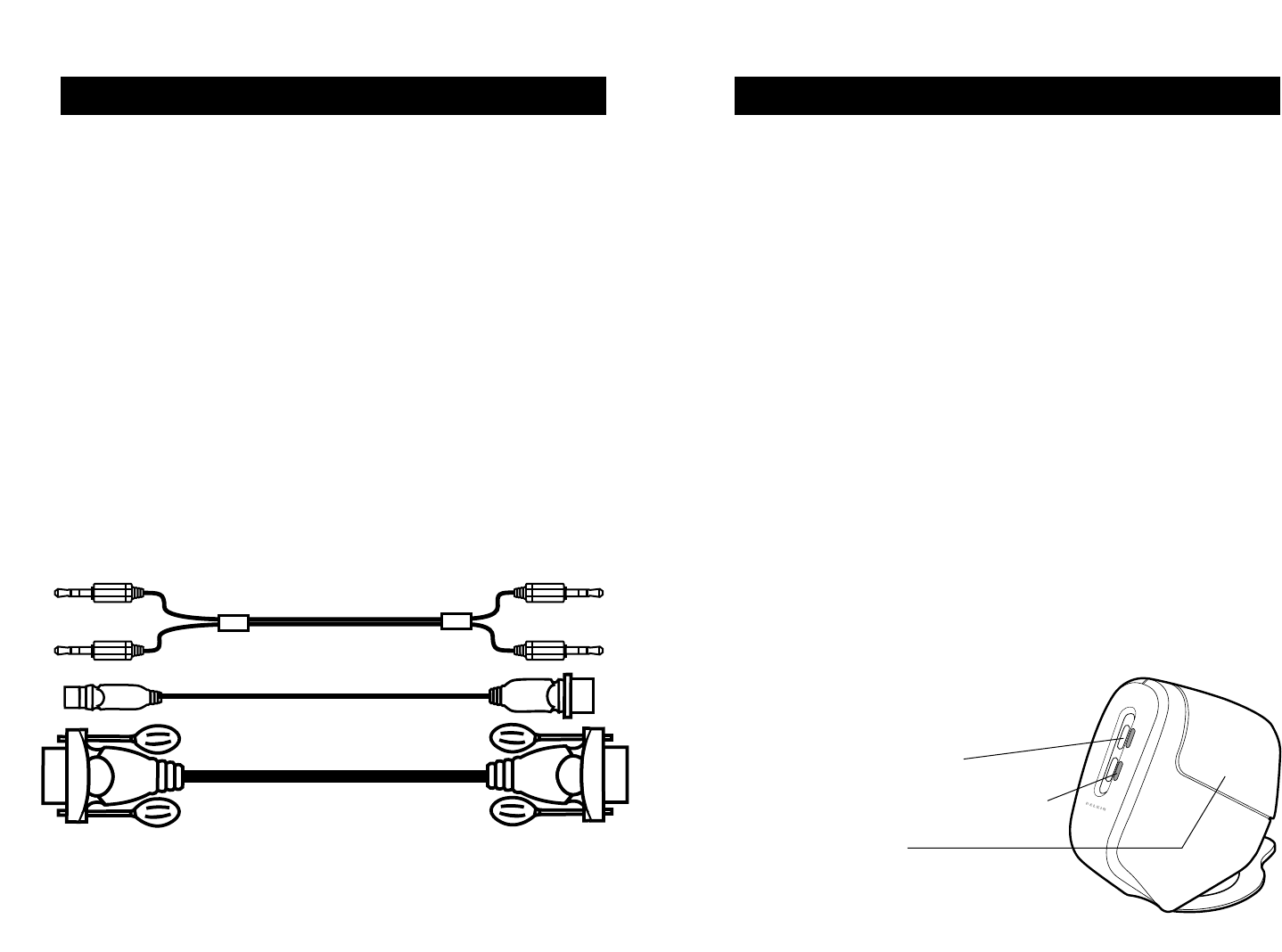

The front of the KVM Switch
• Direct-access port selector
• LED for identification of selected port
• Removable shroud
OVERVIEW
4
Equipment Requirements
Cables
For each USB computer to be connected to the KVM Switch, one VGA
cable and one USB cable is necessary.
To support resolutions of up to 2048x1536@85Hz, use of a 75-Ohm
coaxial VGA cable is required to preserve signal integrity. Cables must
have HDDB15 female to HDDB15 male connectors.
Belkin OmniView KVM Cables for SOHO Series with Audio offer the highest
quality possible to ensure that your data is optimally transmitted and
include PC99 color-coded connectors for easier identification and
connection. Double-shielded, strain-relief constructed KVM Cables for
SOHO Series include an industry-standard, 14-pin, coaxial, VGA cable,
ferrite bead, and nickel-plated connectors for high-resolution
applications. The following cables are recommended for your KVM Switch:
F1D9101-XX (USB Style)
-XX denotes the length in feet.
Available in 6- and 10-foot lengths.
