Model 3311 Page 17

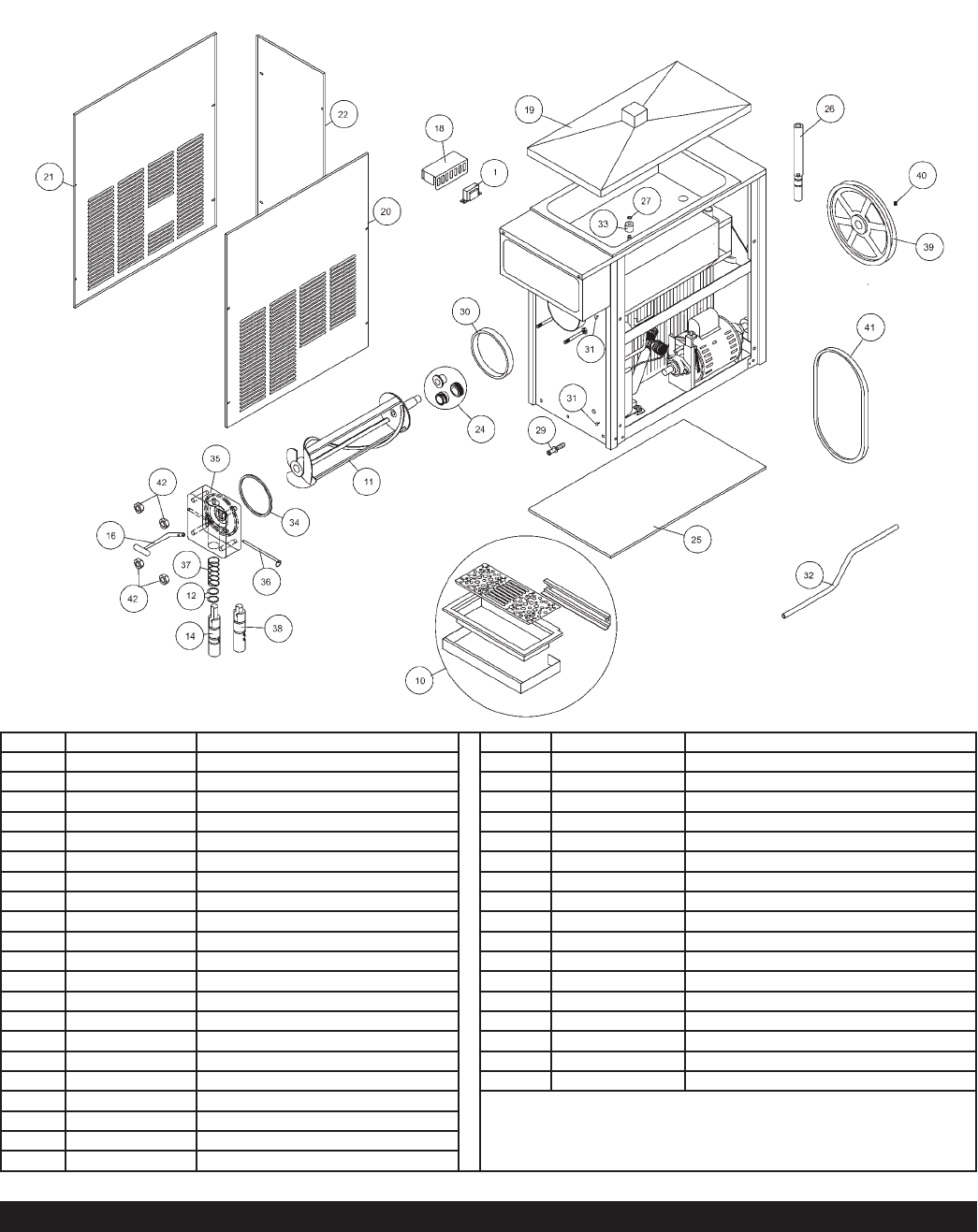

Exploded View
Model 3311
220V Air-Cooled Model
ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION
1 W0570045 BALLAST 25 W0470010 PAD, NEOPRENE RUBBER
2 W0600110 OWNERS MANUAL 26 W0471076 CARB TUBE ASSY, SLUSH/COCKTAIL
4 W0660060 PLASTIC SHIPPING BAG 27 W0340007 O-RING, #108 FLOAT
5 W0600121 HEADER INSTALL INSTR SHEET 29 W0211112 DRAIN TUBE FITTING
6 W0600073 CAUTION RUBBER MAT 30 W0340058 BARREL GASKET
7 W0631903 SANITIZER PACKETS 31 W0630518 RICHCO HOLE PLUG
8 W0600159 WARRANTY CARD 32 W0641027 DRAIN TUBE HOSE
9 W0801023 PACKAGING ASSEMBLY 33 W0570941 MIX LOW IND FLOAT
10 W0890218 DRIP PAN KIT 34 W0340055 SQUARE CUT O-RING
11 W0430026 STANDARD DASHER 35 W0480450 VALVE BODY
12 W0340022 O-RING, #213 36 W0611728 FASPIN
13 WO470076 LUBRICANT, LUBRIFILM SANITARY 37 W0631205 COMPRESSION SPRING
14 W0480451 PLUNGER, STANDARD PRODUCT 38 WO480451 PLUNGER, THICK PRODUCT
15 WO610127 PANEL SCREWS 39 W0450053 10” PULLEY
16 WO480455 HANDLE, VALVE 40 W0610646 SCREW, SET, 5/16-18 X 3/8
18 WO211086 BALLAST COVER 41 W0450209 V-BELT
19 W0520094 HOPPER COVER 42 W0630711 VALVE KNOB
20 W0520065 R.H. SIDE PANEL
21 W0520107 L.H. SIDE PANEL
22 WO520058 REAR PANEL W/C
