Jack PC Hardware User Manual - Training Department
Version 0506
3 HARDWARE SETUP
3.1 Site Preparation
Before installing the Jack PC make sure that:
• The site wiring is appropriate (power and network).
• The site is away from devices that can generate electrical noise,
electromagnetic interference, heat, vibration and such.
• The environmental requirements of the Jack PC as defined in the product
specifications are met.
• Caution: This product is designed for indoor use only!
• Warning: If you are not familiar with LAN wiring practice, use RJ-45
Termination Connector Block to avoid wiring (Part number CPN02164 or
CPN02166 - see accessories list). This connector can only be used to
connect the Jack PC to an existing LAN jack.
3.2 Package Contents
Unpack and identify the following parts:
1. Jack PC device (model EFI6700 or EFI680 or EFI6900).
2. IDC Termination Connector Block
3. Flex-Jack Metal Housing
4. Lower Cardboard Template that can be used for marking wall cutout in New
Installation
5. Extraction Tool to remove device after it was installed
6. RJ-45 Termination Connector Block (optional) (Note: This part must be ordered
separately in case you want to install the Jack PC in to an existing LAN jack. Chip PC
part number: CPN02164 or CPN02166 – see accessories list)
7. Warranty Registration Card

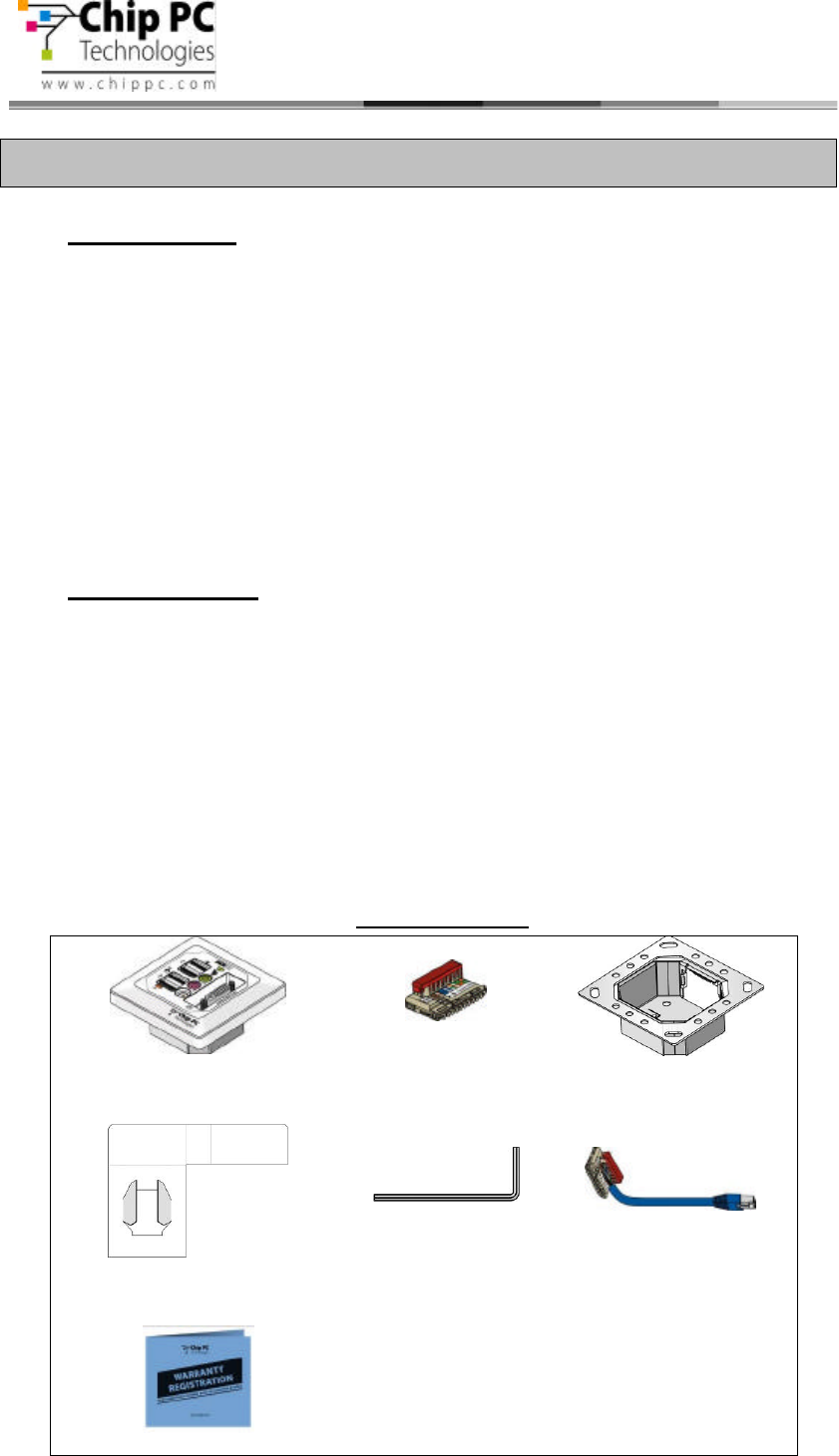

Package Contents
1. Jack PC device (Model
EFI6700 or EFI6800 or
EFI6900)
2. IDC Termination
Connector Block
3. Flex-Jack Metal
Housing
4. Lower Cardboard Template 5. Extraction Tool 6. RJ-45 Termination
Connector Block
(optional)
7. Warranty Registration Card
