48 | Removing the Daughter Board
Procedure
1 Pull the pull-tab to disconnect the daughter-board cable from the connector on
the daughter board.
2 Remove the screws that secure the daughter board to the computer base.
3 Turn the daughter board over and place it on the computer base.

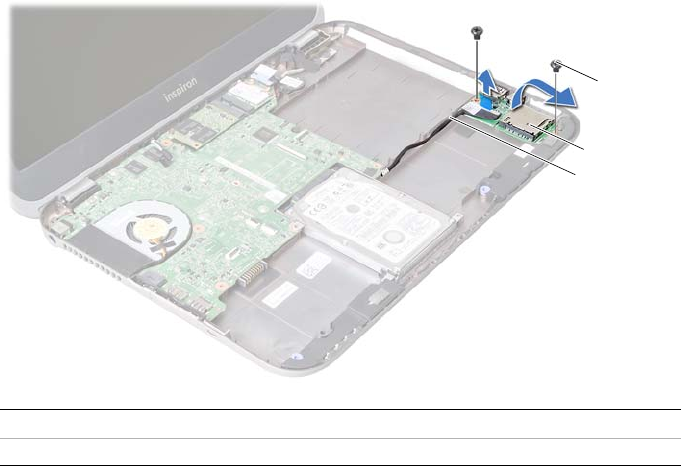

1 screws (2) 2 daughter board
3 daughter-board cable
2
1
3
