Memory Options
Installing the expansion board on the controller board
1.

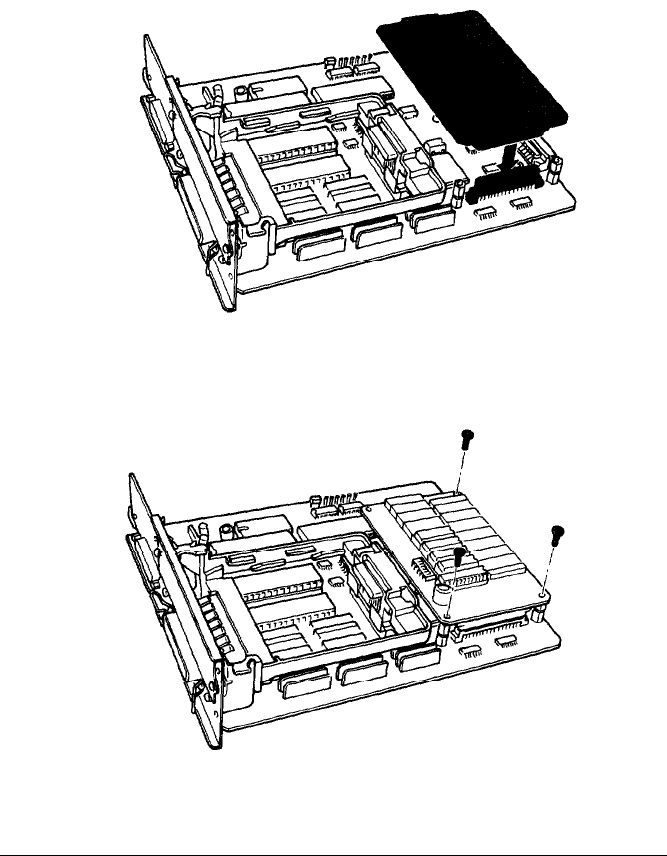

Locate connector CN3 on the controller board. Position the
memory expansion board as shown below, and carefully insert
its connector into connector CN3.
2.
Secure the expansion board with the three screws that came
with it.
Options
7-33
