Interface Boards
2.

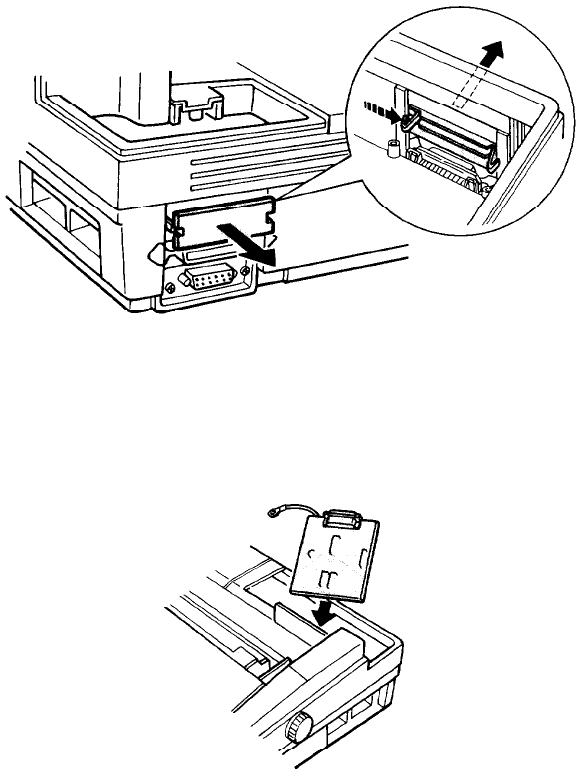

Remove the shield plate above the parallel interface
connector by pressing in on the plastic clips located at the
back of the plate.
3.
Position the interface board inside the printer as shown
below, making sure the board does not catch on any of the
wires inside the compartment.
5-36 Using Printer Options
