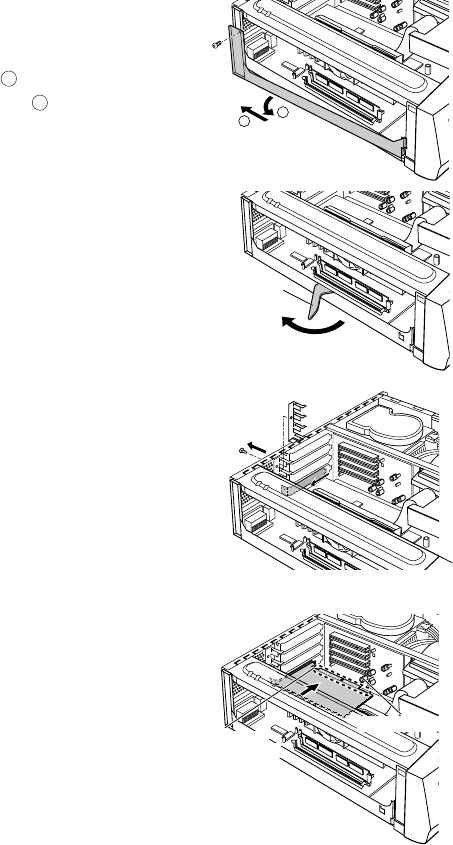

■ Installing an expansion card
To install a large expansion card, remove the motherboard as shown in step 3. To install a small
expansion card, steps 2, 3, 7, and 8 are not required.
1
Remove the upper cover.
2
Remove the retaining metal bracket at the
side (for installing a large expansion card).
Remove the screw, open the retaining metal
bracket in the direction of arrow
1
, and remove
the bracket in the direction of arrow
2
.
3
Slide the motherboard (for installing a
small expansion card).
Raise the lever about 90 degrees and pull out
the motherboard.
4
Remove the slot cover.
Remove the screw to remove the retaining metal
bracket, then remove the slot cover to install the
expansion card.
5
Insert the expansion card into the
connector.
Insert the expansion card firmly into the
connector.
Lever
Expansion slot
Expansion
card terminal
