Main Features
Specifications
MAIN FEATURES /SPECIFICATIONS
1.2
Code 493D
Engine Briggs & Stratton Quantum
Engine type XTS50 DUAL A/C H/F
Engine/Cutterblade speed 2800 rpm
Fuel type Unleaded petrol
Fuel capacity 1.5 litres
Oil type SAE 30 engine oil
Oil sump capacity 0.6 litres
Cutting width 480mm
Cutting height 13 - 60mm
Overall dimensions 1,510 x 590 x 1080mm
Dry Weight 49.5 Kg

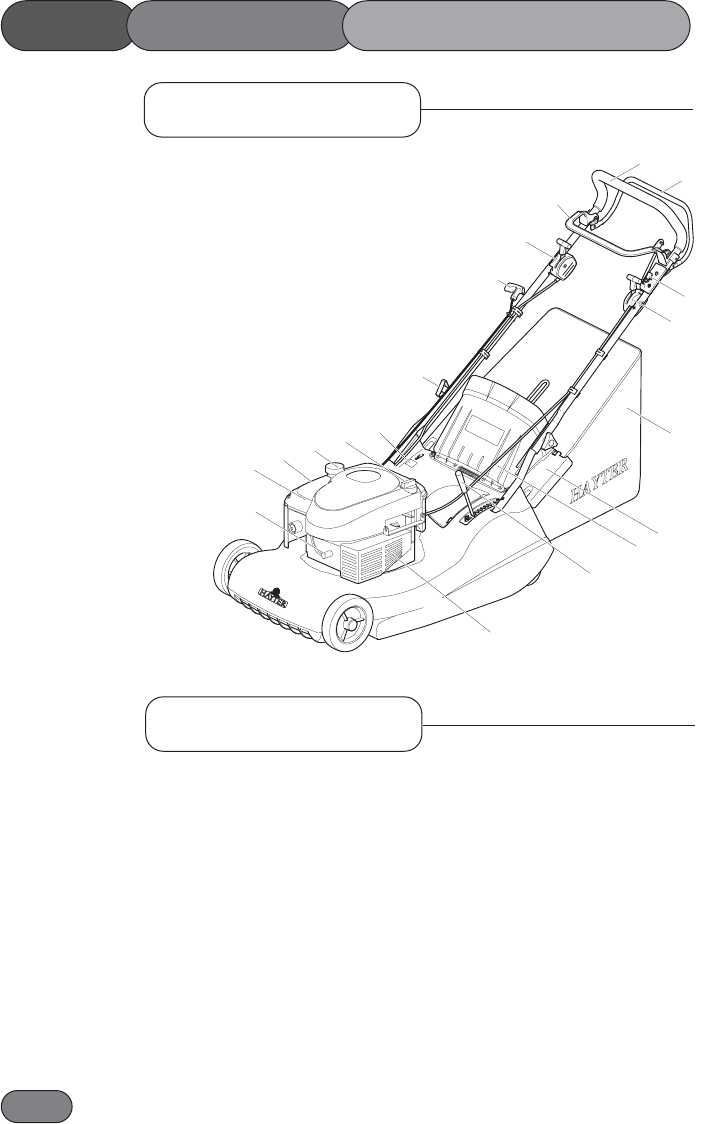

1. Spark Plug Lead.
2. Engine Cover.
3. Air Cleaner.
4. Fuel Filler Cap.
5. Oil Filler Cap and Dipstick.
6. Serial No.Label.
7. Handlebar Securing Knob.
8. Engine Start-Grip.
9. Throttle Control/Engine Stop
10. BBC Control Lever.
11. Handlebar.
12. Ground Drive Clutch Lever
13 Blade Brake Clutch Lever
14. Variable Speed Control ( see note )
15. Grassbag Assembly.
16. Grassbag Cover.
17. Deflector.
18. Height of Cut Adjuster
19. Exhaust Guard
Note: Item 14 should only be operated whilst the engine is running or the cable will be damaged.
