4–42 Maintenance and Service Guide
Removal and replacement procedures

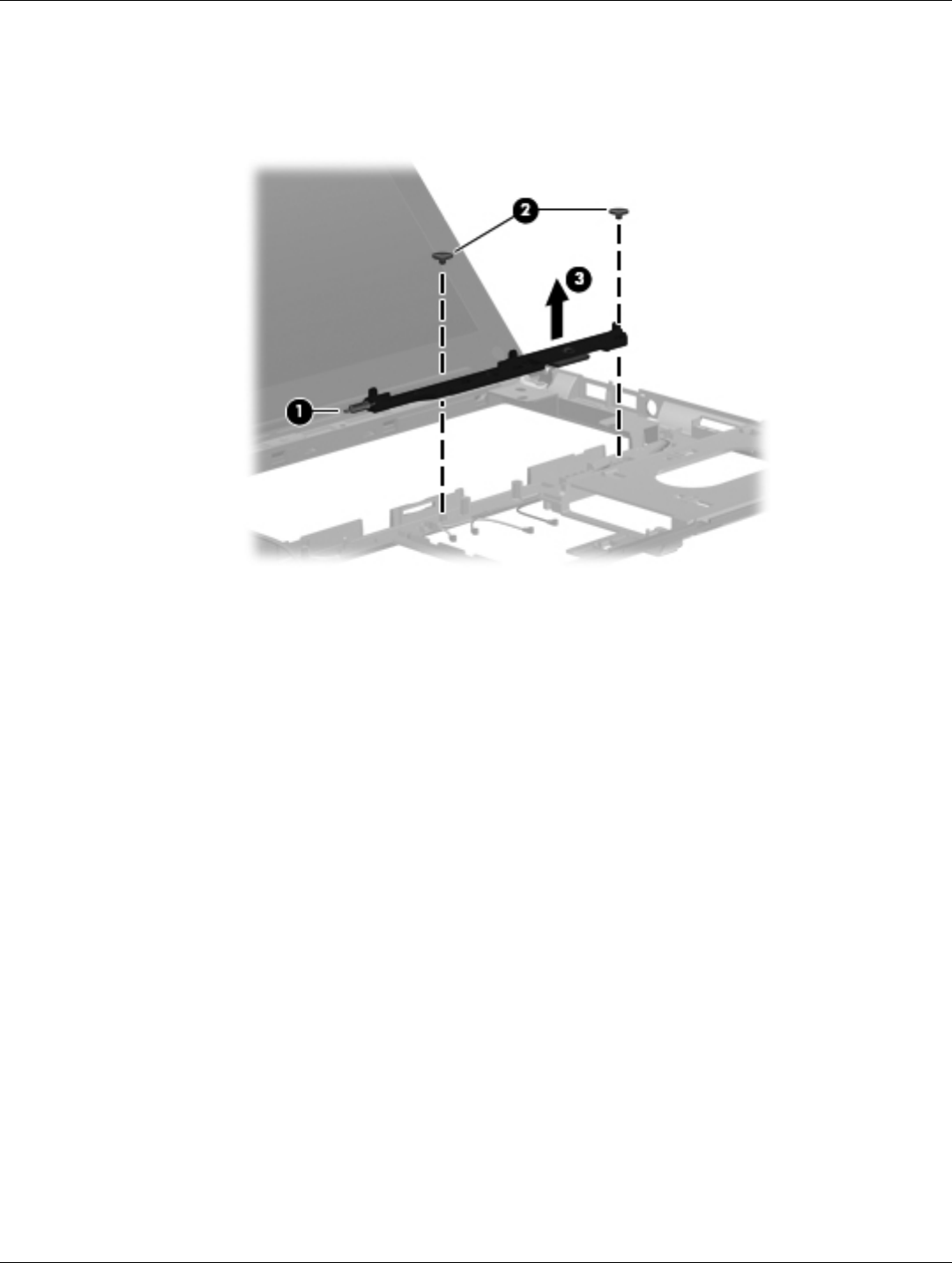

4. Release the battery eject arm spring 1 from the tab built into the base enclosure.
5. Remove the two Phillips PM2.5×4.0 broadhead screws 2 that secure the battery eject arm to the
base enclosure.
6. Remove the the battery eject arm 3.
Reverse this procedure to install the battery eject arm.
