Chapter 7
Labels
● Guidelines
● Preparing to print
● Printing
Guidelines
● Use only paper, plastic, or clear labels that are designed specifically for inkjet
printers.
● Use only full sheets of labels.
● Avoid using labels that are sticky, wrinkled, or pulling away from the protective
backing.
● Do not exceed the In tray capacity: 20 sheets of labels (use only Letter or A4-size
sheets).
Preparing to print

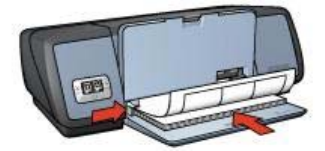

1 Raise the Out tray, and then remove all paper from the In tray.
2 Slide the paper guide all the way to the left.
3 Fan the edges of the label sheets to separate them, and then align the edges.
4 Place the label sheets in the In tray with the label side facing down.
5 Push the sheets into the printer until they stop.
6 Slide the paper guide firmly against the edge of the sheets.
7 Lower the Out tray.
Printing
1 Open the Page Setup dialog box, and then select the following settings:
– Paper Size: A4 or US Letter
– Orientation: The appropriate orientation
2 Click OK.
3 Open the
Print dialog box.
4 Select the Paper Type/Quality panel.
5 In the Paper Type drop-down list, click Automatic or Plain Paper.
6 Select any other print settings that you want, and then click Print.
HP Deskjet 5700 Series 48
