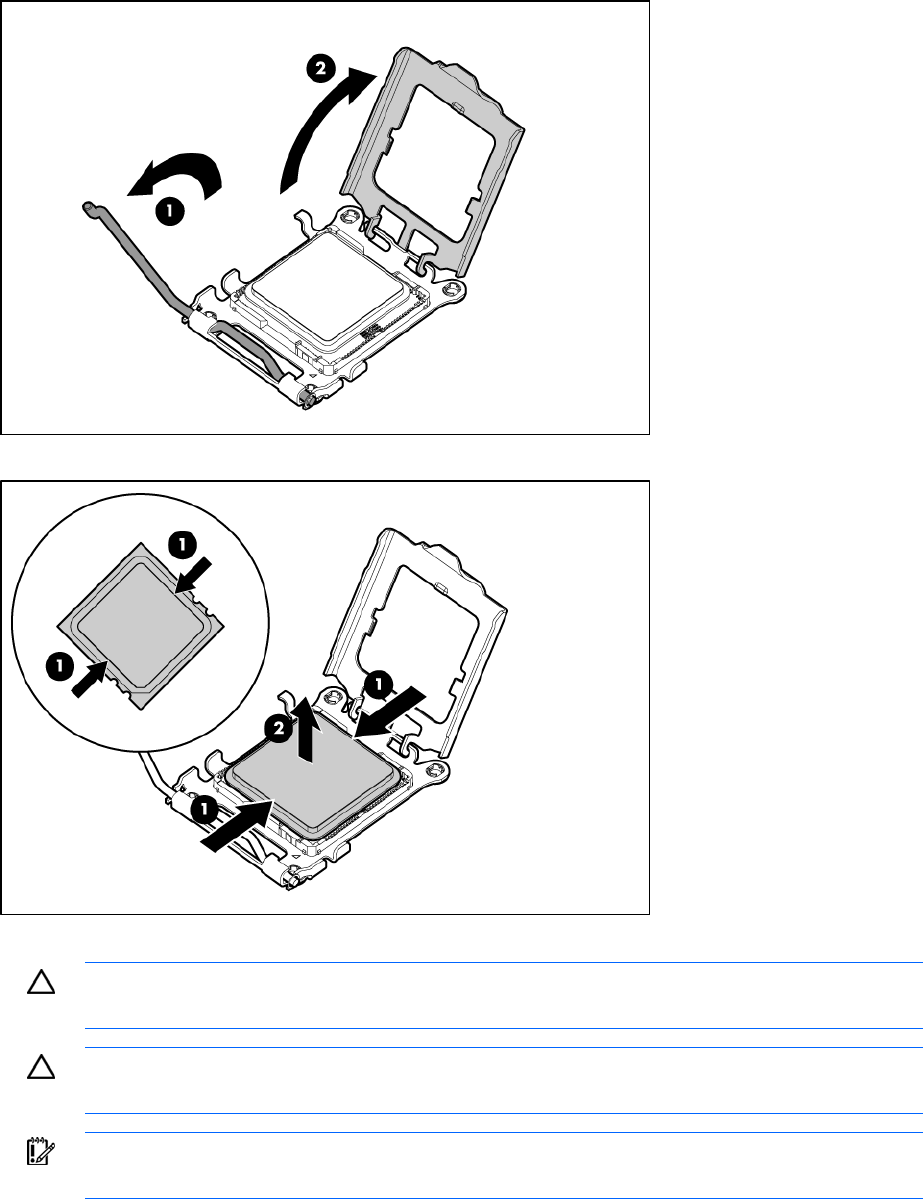

Open the processor retaining latch and the processor socket retaining bracket.
6. Using your fingers, remove the failed processor.
To replace the component:
CAUTION: The pins on the processor socket are very fragile. Any damage to them may
require replacing the system board.
CAUTION: Failure to completely open the processor locking lever prevents the processor from
seating during installation, leading to hardware damage.
IMPORTANT: Be sure the processor remains inside the processor installation tool.
Removal and replacement procedures 33
