5–36 Maintenance and Service Guide
Removal and Replacement Procedures
3. Disconnect the fan cables 1 from the system board.
4. Loosen the 4 PM1.5x12.0 spring-loaded heat sink shoulder
screws 2.
5. Remove the heat sink 3.

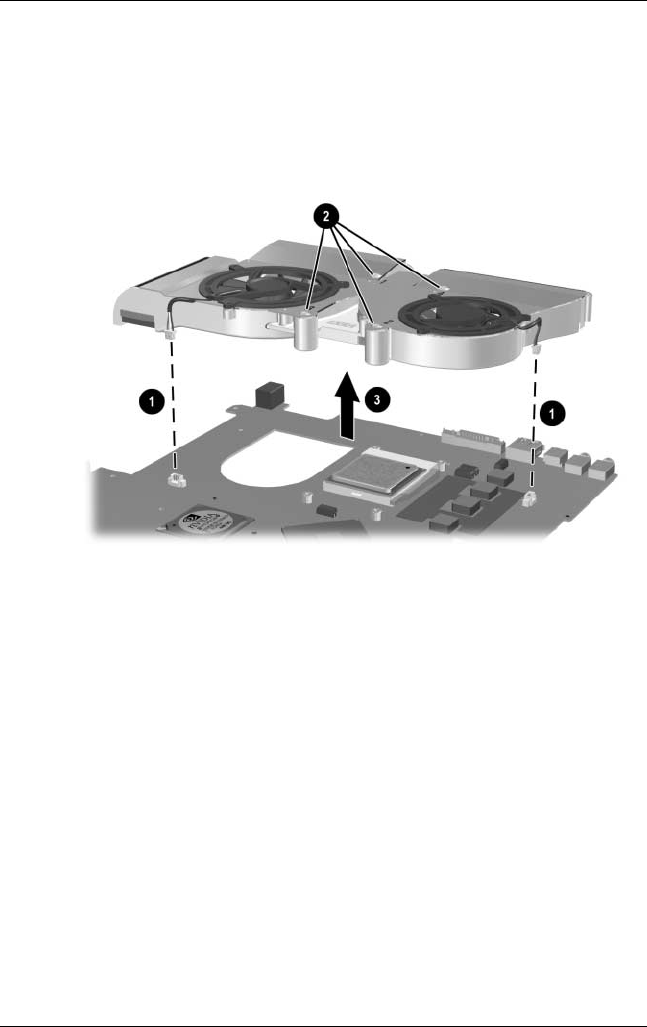

Removing the Heat Sink
