Front Status LEDs
A status indicator is located on each canister. A 'Blue' light indicates normal drive
activity. A 'Red' light indicates a device fault. If all canisters display a 'Red' light
that is blinking on and off it indicates that there is a system fault. A system fault
is either a power supply or blower failure. Check the back of the unit to determine
which fault has occurred. Refer to Chapter 5
for blower fault indicator location
and to Chapter 6
for power supply fault indicator location.
External I/O Connection

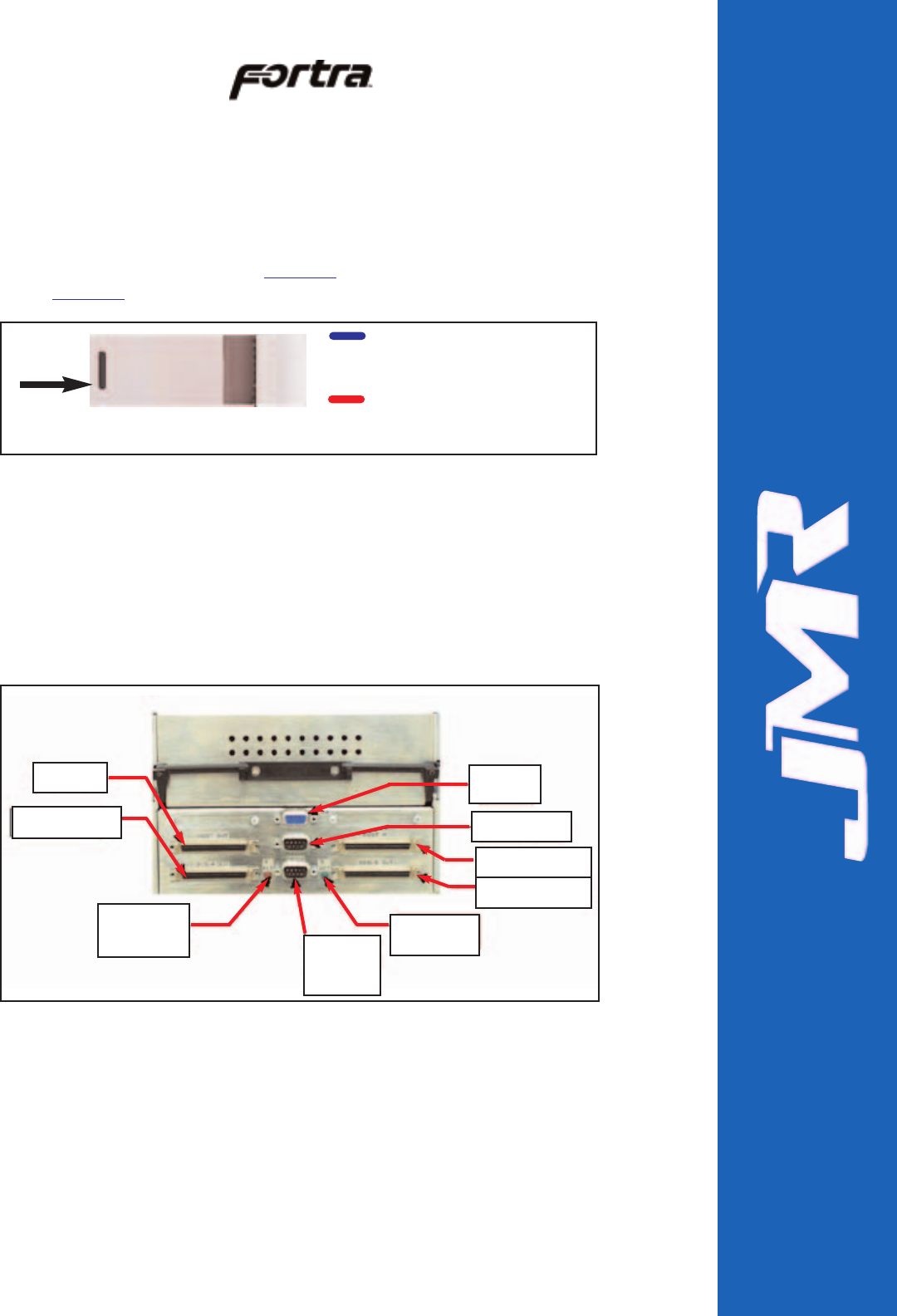

The external I/O connections are located on the back of the unit. The figure below
shows the external I/O connections available. The left rear side of the unit is a
mirror of the right side.
The figure below shows the rear I/O connections for the unit along with status
LEDs.
Connections & LEDs
Host Out
SCSI host connection out.
Host In
SCSI host connection in.
FORTRA
H1 Chaparral G5312 Installation Guide Rev C
4-3
Status
Indicators
A blue light on a single canister
indicates device activity or busy.
A red light on a single canister
indicates a device fault.
Host Out
Channel A Out
SAF-TE
Fault/Status
RS232
Serial
Connector
SAF-TE
Activity
Host IN
Channel B Out
Not Used
S-Link
