connect the mini-SAS connector on the other end of the cable to the mini-SAS ports 0-3 on the
backplane.
2. If your server has more than four hard disk drives installed, for hard disk drive 4 to hard disk drive 7, use
another mini-SAS to mini-SAS signal cable and connect the mini-SAS connector on one end of the
cable to the SAS connector 4-7 on the system board. Then, connect the mini-SAS connector on the
other end of the cable to the mini-SAS ports 4-7 on the backplane.
Refer to the following topics for information about the connector locations and the power cable connections:
• “Hot-swap hard disk drive backplane” on page 38
• “System board components” on page 47
System board components

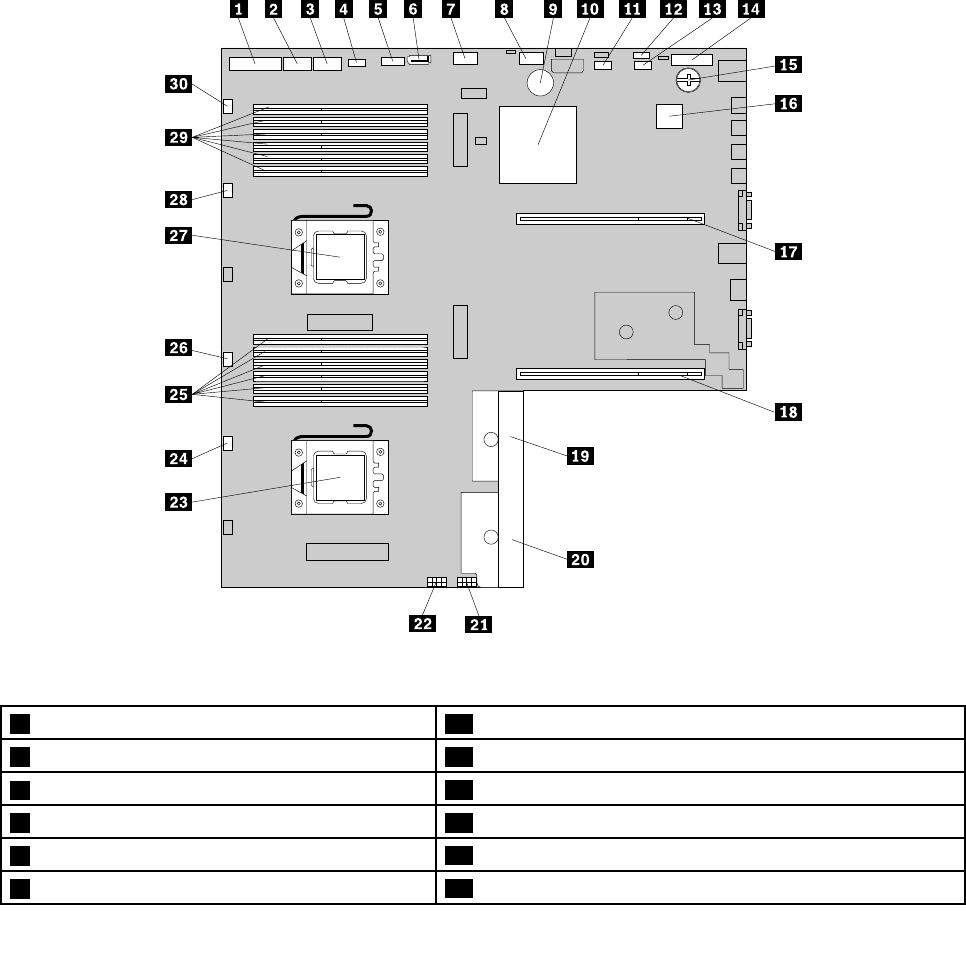

The following illustration shows the component locations on the system board.
Figure 37. System board components
1 Front panel connector
16 ThinkServer Management Module
2 Internal USB connector 1
17 Riser card assembly 1 slot
3 Internal USB connector 2
18 Riser card assembly 2 slot
4 Diagnostic module connector 19 Redundant power supply connector 1
5 Front VGA connector
20 Redundant power supply connector 2
6 SATA connector 0
21 Backplane power connector 1
