Lenovo IdeaPad U510 Hardware Maintenance Manual
52

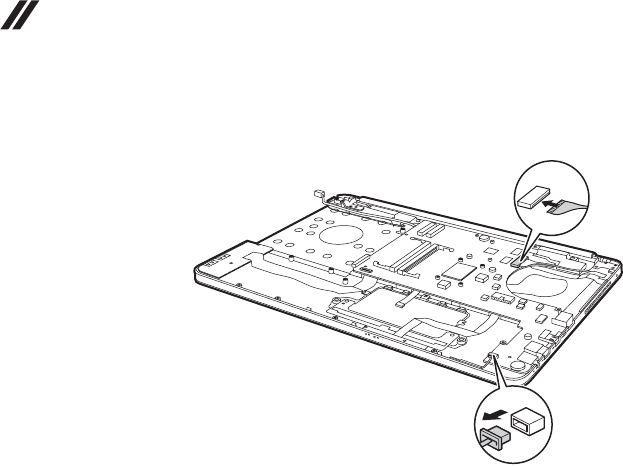

Figure 11. Removal steps of system board (continued)
Disconnect the LCD connector in the direction shown by arrow , unplug
Bluetooth connector in the direction shown by arrow .
When installing: Make sure that all the connectors are attached firmly.
a
b
a
b
