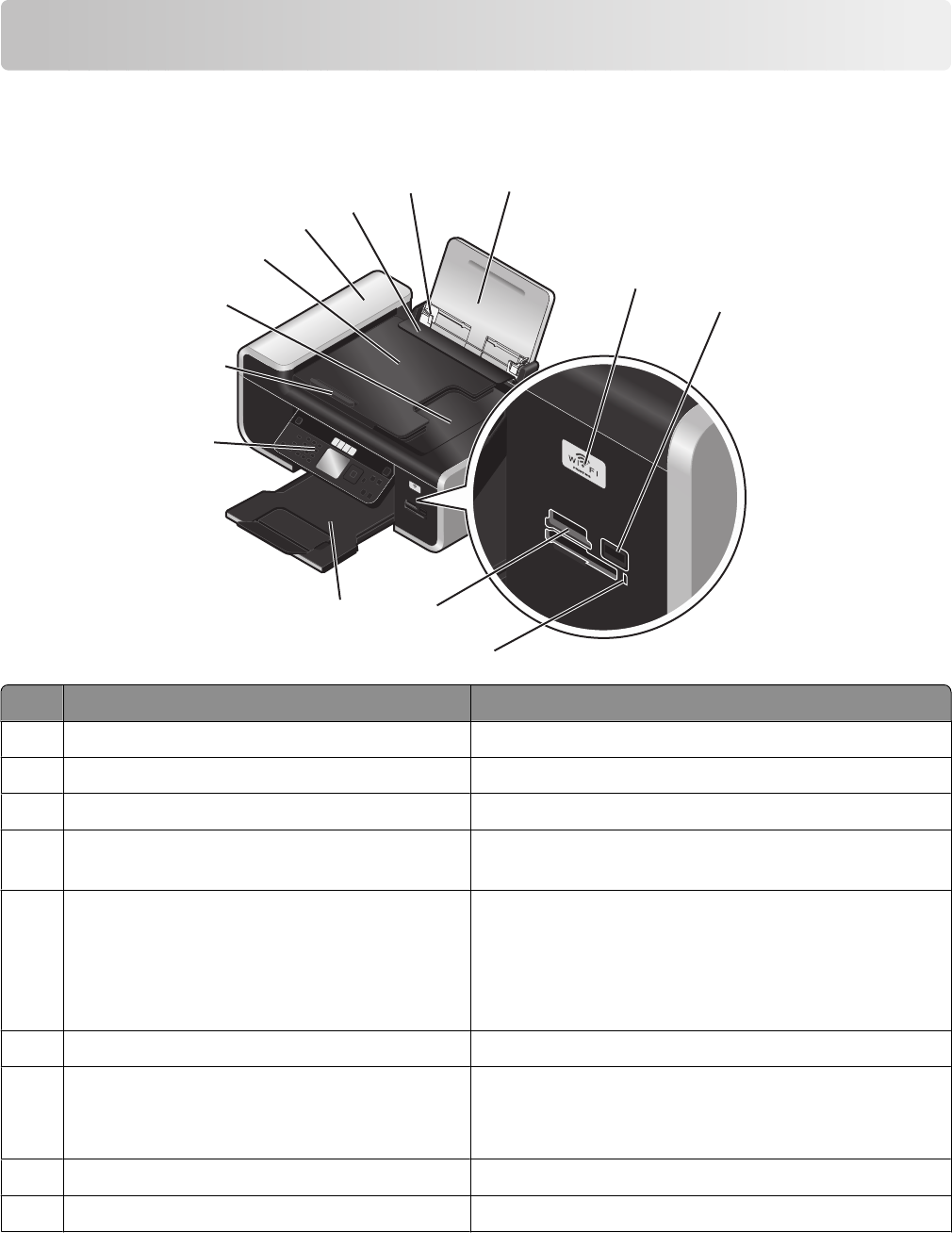

Understanding the parts of the printer
Understanding the parts of the printer
W
F
I
I
P
R
I
N
T
I
N
G
1
2
3
4
6
9
10
11
12
13
7
8
5
Use the To
1
Paper support Load paper.
2
Paper guides Keep paper straight when feeding.
3
Paper feed guard Prevent items from falling into the paper slot.
4
Automatic Document Feeder (ADF) Scan, copy, or fax multiple-page letter-, legal-, and A4-size
documents.
5
Automatic Document Feeder (ADF) tray Load original documents in the ADF. Recommended for
scanning, copying, or faxing multiple-page documents.
Note: Do not load postcards, photos, small items, or thin
media (such as magazine clippings) into the ADF. Place
these items on the scanner glass.
6
Automatic Document Feeder (ADF) output tray Hold documents as they exit from the ADF.
7
Automatic Document Feeder (ADF) paper guide Keep paper straight when feeding into the ADF.
Note: Adjust the paper guide on the ADF tray to the width
of the original document.
8
Printer control panel Operate the printer.
9
Paper exit tray Hold paper as it exits.
Understanding the parts of the printer
8
