Set up the printer and paper handling options
Installing a 500-sheet drawer Your printer supports up to three
additional 500-sheet drawers. However, if
you install a 2000-sheet drawer, you can
only add one additional 500-sheet
drawer.
Warning: If you have an optional duplex unit and a
2000-sheet drawer, you must install a 500-sheet drawer
between the duplex unit and the 2000-sheet drawer.
1 Unpack the 500-sheet drawer and
remove any packing material.
2 Place the drawer in the location
you have chosen for your printer or
install it on another drawer:
a Align the holes in the 500-sheet
drawer with the positioning
posts on the lower drawer.
b Lower the 500-sheet drawer
into place. Make sure it is
seated securely on the other
drawer.

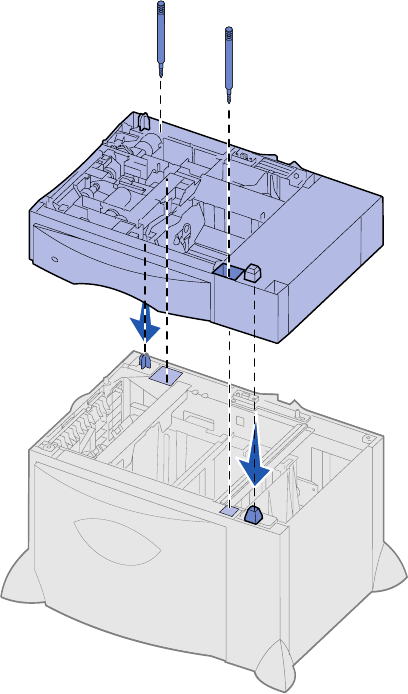

3 If you are installing a 500-sheet
drawer on top of a 2000-sheet
drawer, secure them with
stabilizing screws.
a Insert the screws through the
holes next to the positioning
posts on the 500-sheet drawer.
b Hand-tighten the screws.
Even when fully inserted, the
screws allow some space
between the drawers.
4 Install another 500-sheet drawer,
or continue with “Installing a
duplex unit” on page 7 or
“Positioning the printer” on page 8.
