EN-18
D Note
• Wired connection is recommended when using the following features. (Using the following features with a
wireless connection can be affected by other devices using radio frequencies.)
- Play contents from DLNA certified home media servers
- Video streaming services (Netflix / Film Fresh / Blockbuster / VUDU)
- Listening to Internet radio (Pandora)
- Network update

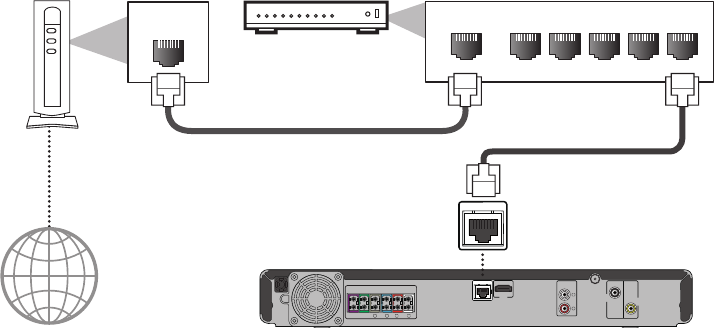

■ Wired Connection
SPEAKERS(4
SUB
WOOFER
FRONT
CENTER
REAR
FRONT
LAN
FM
ANT
75Ω
HDMI OUT
AUDIO IN
AUX
DIGITAL
AUDIO IN
COAXIAL
VIDEO OUT
WAN LAN
12345
LAN
LAN
Internet
Networking equipment
(modem,etc.)
LAN cable (not supplied)
LAN cable (not supplied)
Broadband router or hub
C Caution
• Do not insert any cable other than a LAN cable to the LAN terminal to avoid damaging the unit.
• Do not connect your PC directly to the LAN terminal of this unit.
D Note
• After you make a wired connection, set up necessary network settings. (For network setting of wired connection,
refer to “Wired” on page 56.)
• If your cable modem does not have router functions, connect a wired router.
• If your cable modem has router functions but there is no vacant port, add a hub.
• For a wired router, use a router which supports 10BASE-T / 100BASE-TX ETHERNET standard.
• Please purchase shielded LAN cables at your local store and use them when you connect to network equipment.
Continued on next page.
