Connection for 5.1 multi-channel playback
The three units are connected using F.C.B.S. For the F.C.B.S connection, prepare 3 audio connection cables, and refer to F.C.B.S. ( vpage10).
Connect the outputs of players that have 5.1 channel analog outputs to each of the three units.
If using a subwoofer, see the owner’s manual that came with the subwoofer for further instructions.
Set the ID numbers for the three amplifiers as explained in How to set ID number for F.C.B.S. (vpage18).
•WhentheID1unitisoperated,ID2andID3unitswilloperateinsync.
FRONT R FRONT L SURROUND R
MULTI CHANNEL AUDIO OUT
SURROUND L SUB-WOOFER CENTER
•Set SPEAKER button on front panel in ON
position.
•Set to “STEREO”.
•Set SPEAKER button on front panel in ON position.
•Set to “STEREO”.
For front L/R speakers
Set PM-14S1 to ID 1.
For center speaker or
subwoofer
Set PM-14S1 to ID 2.
For surround speakers
Set PM-14S1 to ID 3.
To power
outlet.
To power
outlet.
To power
outlet.
R channel front
speaker
L channel front
speaker
subwoofer
To line input
jack
Front center
speaker
R channel
surround
speaker
L channel
surround
speaker
Super Audio CD multi-channel player, etc.
•Set SPEAKER button on front panel in ON
position.
•Set to “STEREO”.

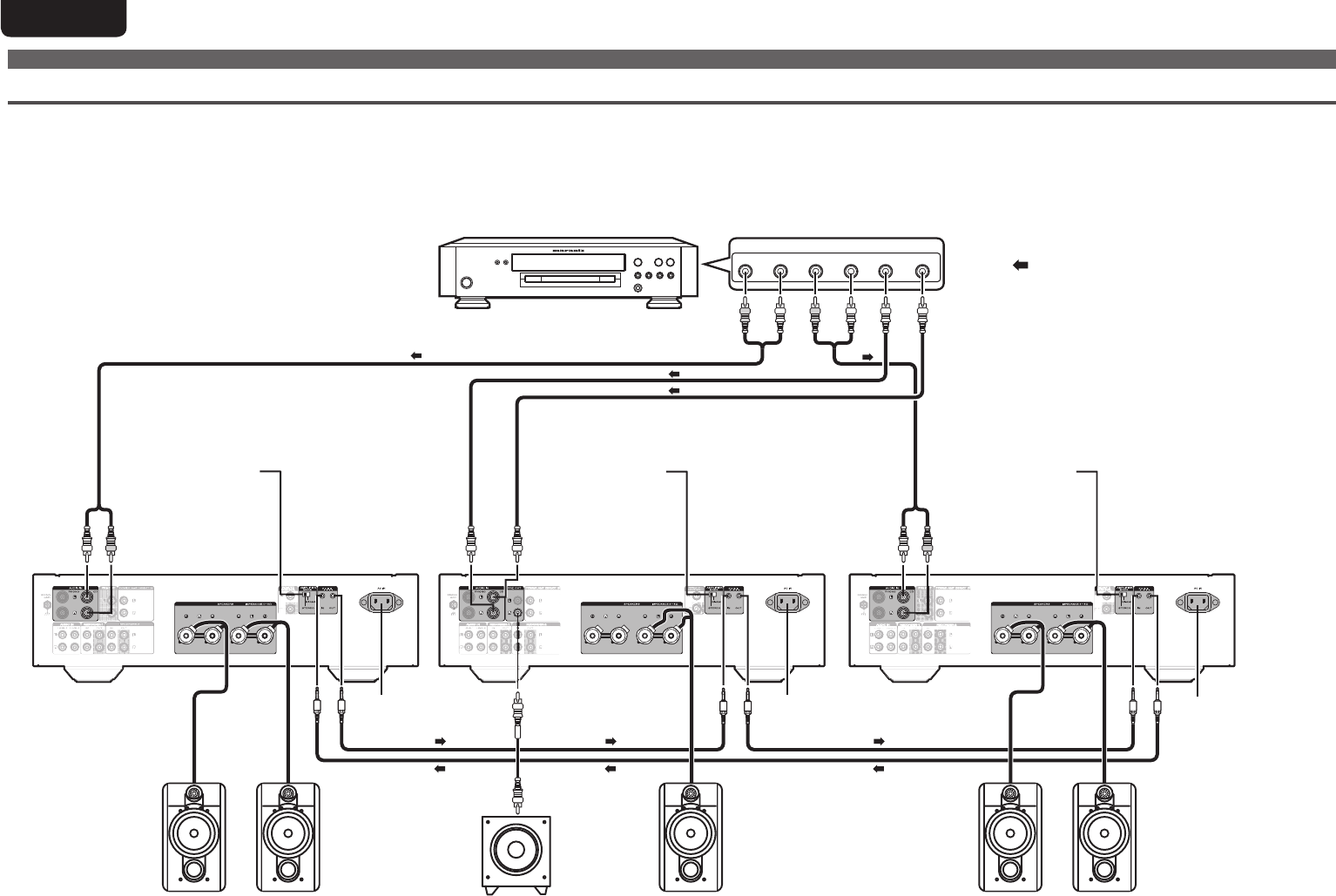

F.C.B.S. connection
: Signal flow
