TRIM ADJUSTMENT FUNCTION
You can adjust the output level within -6.0dB–+6.0dB (0.5dB
step) for each channel.
77
77
7 How to adjust Trim setting In case
of 1 unit

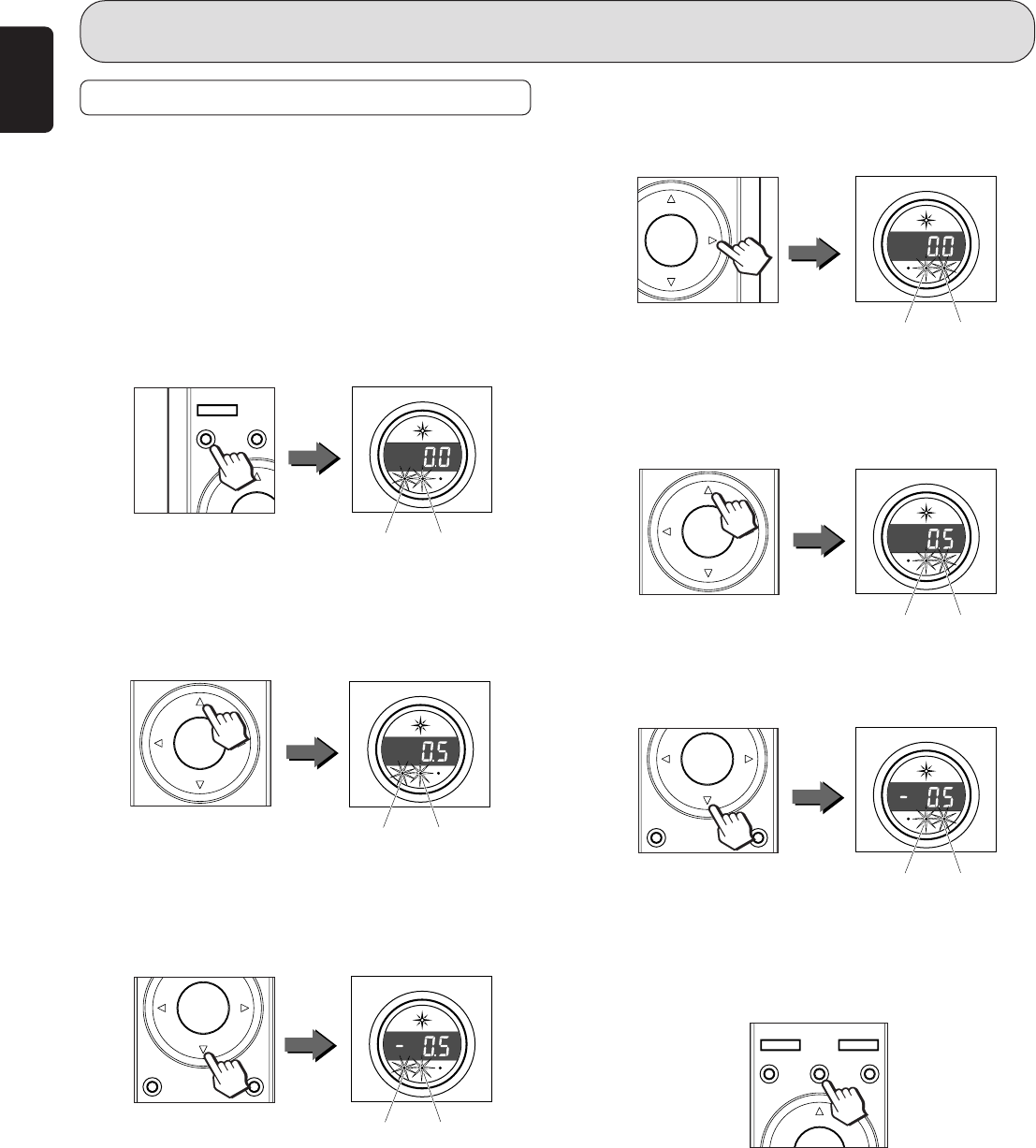

q Press the TRIM button on the remote controller.
Then A ch indicator on the Front display will illuminate
red, the Green colored Sync indicator will begin flashing.
The Volume indicator will show the Trim adjustment level
on the A ch.
w Once the ▲ button on remote controller is pressed, The
Trim adjustment level will be increased by 0.5 dB step,
and the output level on the A ch will be increased.
Once ▼ button on remote controller is pressed, the Trim
adjustment level will be decreased by 0.5 dB step, and
the output level on the A ch will be decreased.
e
Once the
3
button on
remote controller
is pressed, Indicator
on the A ch will be turned off, the indicator on the B ch will
be illuminated. Then Sync indicator remains flashing
Green.
The Volume indicator will show the Trim level on the B ch.
Once the ▲
button
on the remote controller is pressed,
the Trim adjustment level will be increased by 0.5 dB step,
the output level on the B ch will be increased.
Once the
▼
button on the remote controller is pressed,
the Trim adjustment level will be decreased by 0.5 dB step,
the output level on the B ch will be decreased.
r Once you have completed the trim adjustment, press the
Exit Button on the remote controller. This concludes the
adjustments and memorized them.
