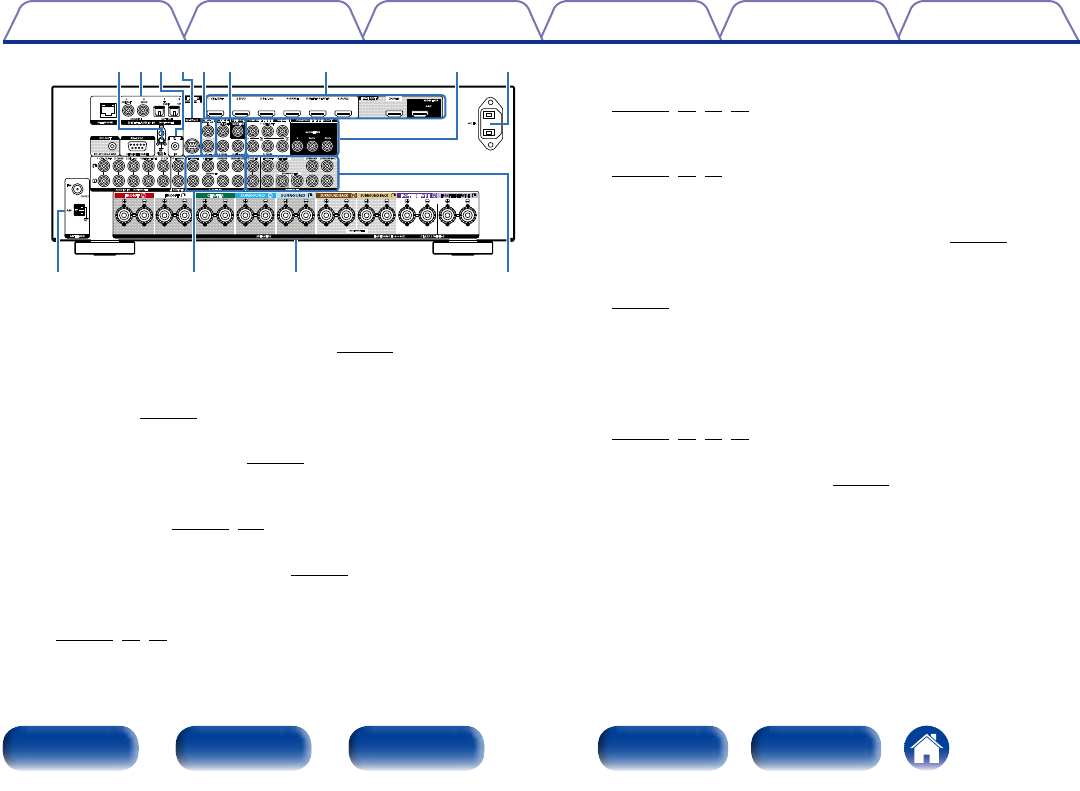

q FM/AM antenna terminals (ANTENNA)
Used to connect FM and AM antennas (vpage44).
w 7.1ch input connectors (7.1CH IN)
Used to connect to a device that has multi-channel audio output
connectors (vpage41).
e Speaker terminals (SPEAKERS)
Used to connect speakers (vpage25).
r PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier or an external
power amplifier (vpage26, 132).
t AC inlet (AC IN)
Used to connect the power cord (vpage51).
y Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors
(vpage35, 37, 38).
u HDMI connectors
Used to connect devices equipped with HDMI connectors
(vpage33, 34, 37, 38).
i Video connectors (VIDEO)
Used to connect devices equipped with video connectors
(vpage35, 37, 38).
o REMOTE CONTROL connectors
Used to connect infrared receivers/transmitters in order to operate this
unit and external devices from a dierent room (vpage49).
Q0 M-XPort connector
Used to connect to a wireless receiver (RX101, sold separately)
(vpage48).
Q1 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q2 Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors
(vpage34, 35, 37, 38).
Q3 SIGNAL GND jacks
Used to connect to a turntable (vpage40).
