WAN Status action buttons are described in Table 5-2
Click on the “Show Statistics” button to display router usage statistics, as shown below.

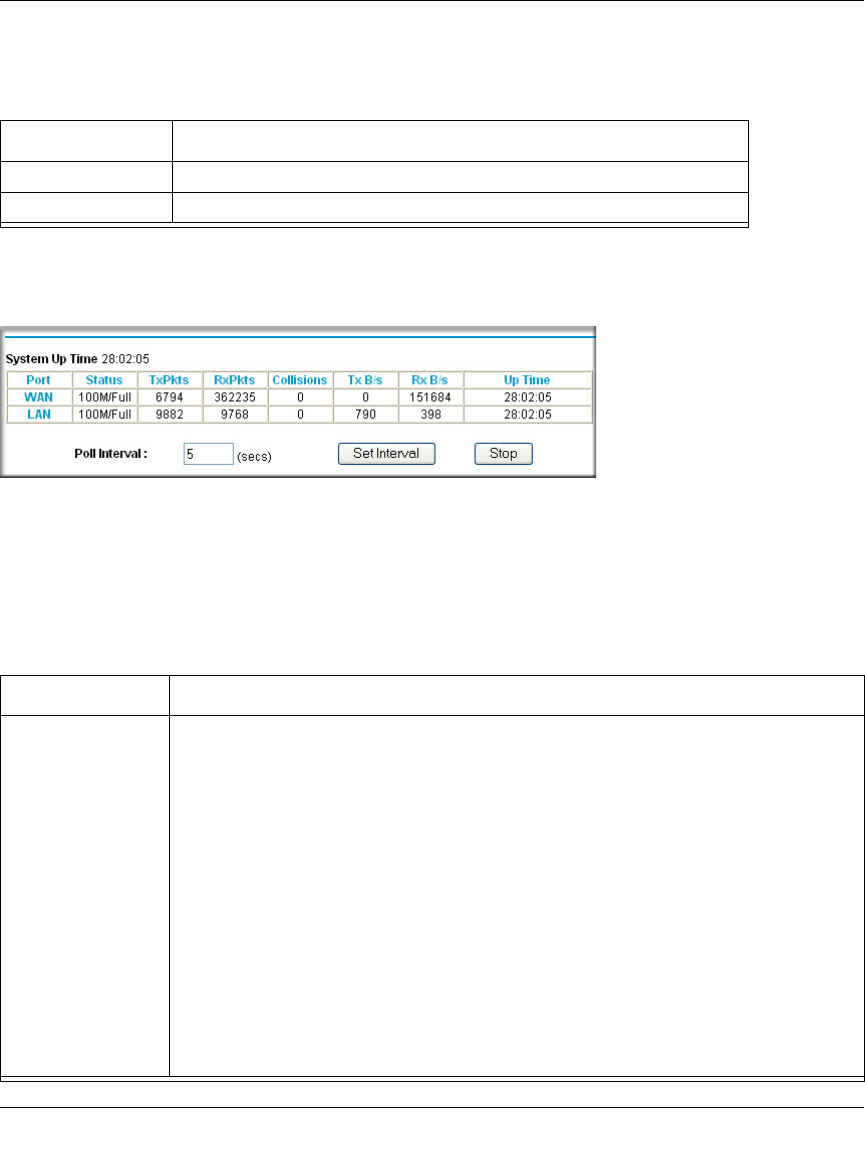

Figure 5-3: Router Statistics screen
This screen shows the following statistics:
Table 5-2. Connection Status action buttons
Field Description
Release Click Release to release the DHCP lease.
Renew Click Renew to renew the DHCP lease.
Table 5-1. Router Statistics Fields
Field Description
Port The statistics for the WAN (Internet) and LAN (local) ports. For each port, the screen
displays:
Status The link status of the port.
TxPkts The number of packets transmitted on this port since reset or manual clear.
RxPkts The number of packets received on this port since reset or manual clear.
Collisions The number of collisions on this port since reset or manual clear.
Tx B/s The current transmission (outbound) bandwidth used on the WAN and LAN ports.
Rx B/s The current reception (inbound) bandwidth used on the WAN and LAN ports.
Up Time The amount of time since the router was last restarted.
Up Time The time elapsed since this port acquired the link.
Poll Interval Specifies the intervals at which the statistics are updated in this window. Click on Stop
to freeze the display.
