03 Connecting your equipment
Bi-wiring your speakers
Your speakers can also be bi-wired if they sup-
port bi-amping.
! With these connections, the Speaker System
setting makes no difference.
CAUTION
! Don’t connect different speakers from the
same terminal in this way.
! When bi-wiring as well, heed the cautions for
bi-amping shown above.

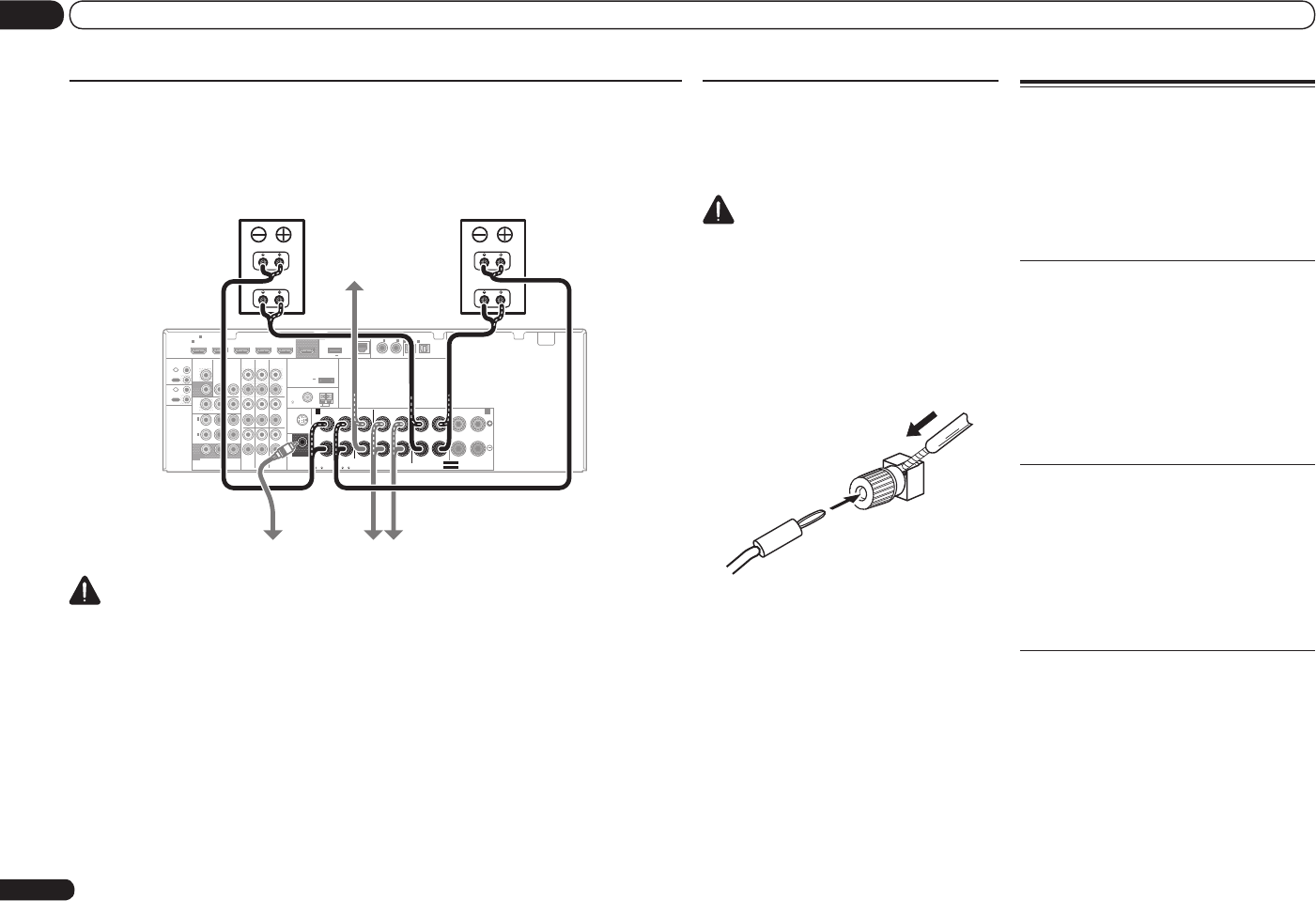

% To bi-wire a speaker, connect two
speaker cords to the speaker terminal on
the receiver.
Using a banana plug for the second connection
is recommended.
Selecting the Speaker system
The front height terminals can be used for front
wide and Speaker B connections, in addition to
for the front height speakers. Also, the surround
back terminals can be used for bi-amping and
ZONE 2 connections, in addition to for the sur-
round back speakers. Make this setting accord-
ing to the application.
Front height setup
*Default setting
1 Connect a pair of speakers to the front
height speaker terminals.
See Standard surround connection on page 13 .
2 If necessary, select ‘Normal(SB/FH)’
from the Speaker System menu.
See Speaker system setting on page 64 to do
this.
Front wide setup
1 Connect a pair of speakers to the front
height speaker terminals.
See Standard surround connection on page 13 .
2 Select ‘Normal(SB/FW)’ from the
Speaker System menu.
See Speaker system setting on page 64 to do
this.
Speaker B setup
You can listen to stereo playback in another
room.
1 Connect a pair of speakers to the front
height speaker terminals.
See Standard surround connection on page 13 .
2 Select ‘Speaker B’ from the
Speaker System menu.
See Speaker system setting on page 64 to do
this.
Bi-amping your speakers
Bi-amping is when you connect the high frequency driver and low frequency driver of your speakers
to different amplifiers for better crossover performance. Your speakers must be bi-ampable to do
this (having separate terminals for high and low) and the sound improvement will depend on the
kind of speakers you’re using.
HDMI
VIDEO
CONTROL
IR
COMPONENT
VIDEO
VIDEO 1 IN
TV/SAT
IN
ZONE 2
DVR/BDR
CD-R/TAPE
ZONE 2
DVR/
BDR
OUT
OUT
DVD ININ
IN
IN
IN
CD
L
R
L
R
IN
L
R
OUT OUT
VIDEO 1
IN
DVD INBD IN
DVR/BDR IN
FM UNBAL
75
FRONT CENTER
SURROUND
SURROUND BACK / ZONE 2
IN
R L R L R LR
L
(
Single
)
AM LOOP
(
CD
)(
DVD
)
TV/SAT
VIDEO 1
DVDY P
B
P
R
(
DVR/BDR
)(
TV/SAT
)
COAXIAL
(
10/100
)
LAN
AUDIO
SIRIUS
PRE OUT
SPEAKERS
ANTENNA
OPTICAL
ASSIGN
ABLE
ASSIGNABLE
ASSIGNABLE
OUT
MONITOR
OUT
MONITOR
OUT
SUBWOOFER
IN
1
(
DVD
)
IN
1
(
DVR/
BDR
)
IN
2
ASSIGNABLE
1
IN
1
IN
2
IN
1
IN
2
Class 2 Wiring
SEE INSTRUCTION MANUAL
SELECTABLE
SELECTABLE
VOIR LE MODE D’EMPLOI
CAUTION:
SPEAKER IMPEDANCE
6
-
16 .
ATTENTION:
ENCEINTE D’IMPEDANCE DE
6
-
16 .
FRONT HEIGHT / WIDE /
B
A
OUT
IN
OUT
IN
DC OUTPUT
for WIRELESS LAN
(
OUTPUT 5
V
0.1 A MAX
)
ADAPTER PORT
(
OUTPUT 5 V 0.6 A MAX
)
High
Low
High
Low
Front right
Front left
Bi-amp compatible
speaker
Subwoofer
Bi-amp compatible
speaker
Center
Surround right Surround left
CAUTION
! Most speakers with both High and Low terminals have two metal plates that connect the High
to the Low terminals. These must be removed when you are bi-amping the speakers or you could
severely damage the amplifier. See your speaker manual for more information.
! If your speakers have a removable crossover network, make sure you do not remove it for bi-amping.
Doing so may damage your speakers.
