Controls and displays 04
21
En
English
Français
Deutsch
Nederlands
Italiano
Español
Chapter
4
:
Controls and displays

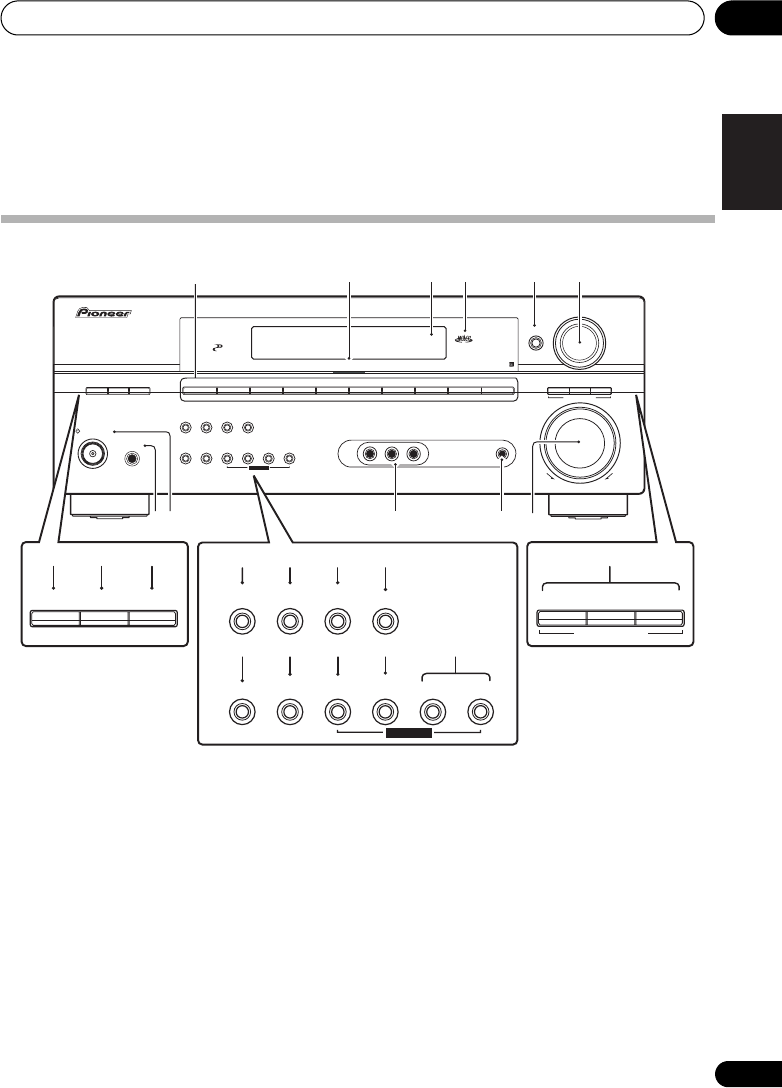

Front panel
1 Input select buttons
Press to select an input source.
2 Digital Precision Processing indicator
Lights to indicate digital processing.
3 Character display
See Display on page 22.
4 MCACC indicator
Lights when Acoustic Calibration EQ (page 30)
is on (Acoustic Calibration EQ is automatically
set to ALL CH ADJUST after the Auto MCACC
Setup (page 8) or EQ Auto Setup (page 37)).
5 ENTER
6 MULTI JOG dial
Use the MULTI JOG dial to select various
settings and menu options.
7PHASE CONTROL
Press to switch on/off Phase Control (page 10).
8 ACOUSTIC EQ
Press to select an Acoustic Calibration EQ
setting (page 30).
9 PHONES jack
Use to connect headphones (when connected,
there is no sound output from the speakers).
10 STANDBY/ON
Switches the receiver between on and standby.
UPDOWN
MULTI JOG
MASTER
VOLUME
ENTER
VSX-817
STANDBY/ON
PHONES
DVD/LD
TV/ SAT
DVR/ VCR VIDEO/FRONT AUDIO
CD
CD
-
R/TAPE/MD
FM/AM
XM
MIDNIGHT/
LOUDNESS
SB ch
PROCESSING
SOUND
RETRIEVER
ACOUSTIC
EQ
PHASE
CONTROL
AUTO SURR/
DIRECT
TUNING/
STATION
SETUP RE TURN
TONE
TUNER
EDIT
SIGNAL
SELECT
SPEAKERS
MULTI JOG
STANDARD
ADVANCED
SURROUND
STEREO/
F.S.SURR
LISTENING
MODE
SIRIUS
AUX
PHASE
CONTROL
MCACC/
AUDIO IN
AUDI O RLVIDEO
DIGITAL PRECISION
PROCESSING
ACOUSTIC
EQ
PHASE
CONTROL
AUTO SURR/
DIRECT
STANDARD
ADVANCED
SURROUND
STEREO/
F.S.SURR
LISTENING
MODE
MIDNIGHT/
LOUDNESS
SB ch
PROCESSING
SOUND
RETRIEVER
TUNING/
STATION
SETUP RETURN
TONE
TUNER
EDIT
SIGNAL
SELECT
SPEAKERS
MULTI JOG
1
910
5 6
32 4
131211
16 17
7 823
14 15
2118 19 20 22
23
