Connecting up03
16
En
Using the component video
jacks
Component video should deliver superior
picture quality when compared to composite
video. A further advantage (if your source and
TV are both compatible) is progressive-scan
video, which delivers a very stable, flicker-free
picture. See the manuals that came with your
TV and source component to check whether
they are compatible with progressive-scan
video.
Important
• If you connect any source component to
the receiver using a component video
input, you must also have your TV
connected to this receiver’s
COMPONENT
VIDEO MONITOR OUT
jacks.
1 Connect the component video outputs of
your source to a set of component video
inputs on this receiver.
Use a three-way component video cable for the
connection.
2 If necessary, assign the component video
inputs to the input source you’ve connected.
This only needs to be done if you didn’t connect
according to the following defaults:
•
Component 1
–
DVD
•
Component 2
–
TV
•
Component 3
–
DVR
See
Assigning the component video inputs
on
page 65 for more on this.
3 Connect the COMPONENT VIDEO
MONITOR OUT jacks on this receiver to the
component video inputs on your TV or
monitor.
Use a three-way component video cable.
Connecting using HDMI
If you have an HDMI or DVI (with HDCP)
equipped component, you can connect it to
this receiver using a commercially available
HDMI cable.
The HDMI connection transfers uncompressed
digital video, as well as almost every kind of
digital audio that the connected component is
compatible with, including DVD-Video, DVD-
Audio (see below for limitations), Video CD/
Super VCD, CD and MP3.

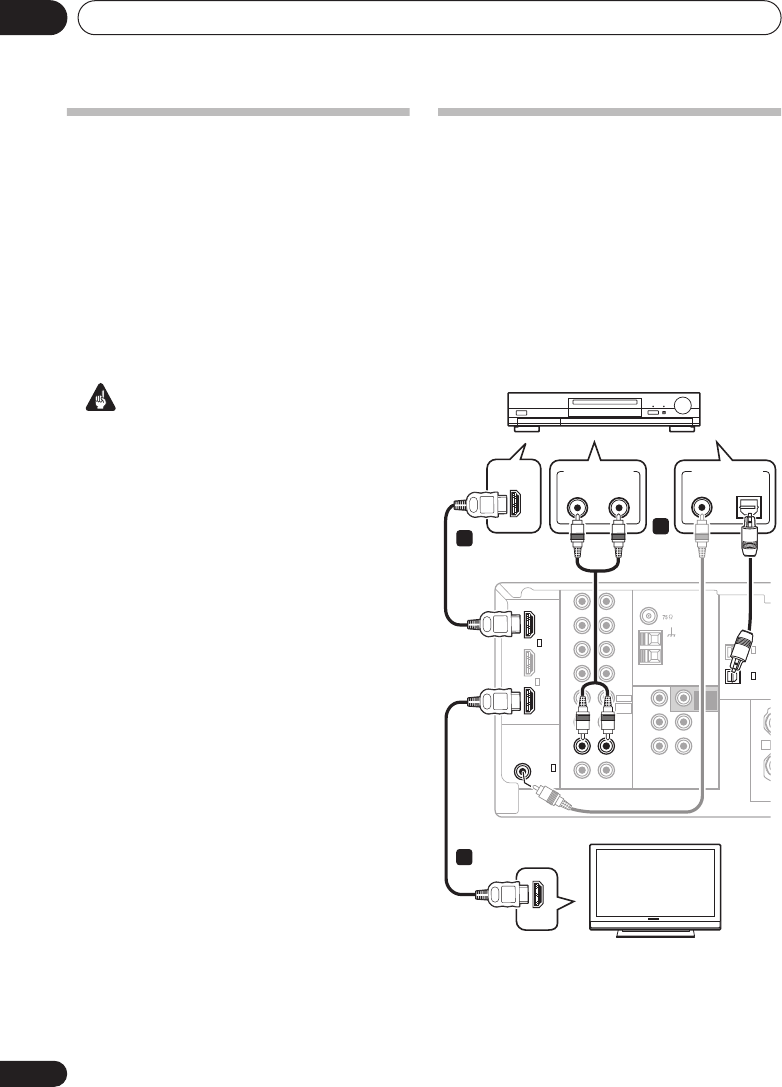

The illustration shows the VSX-818V, but
connections for the VSX-918V are the same.
HDMI
IN
RL
IN
AUX
CD
IN
OUT
DVD
/
BD
TV
/
SAT
FRONT
DVD5.1
CH INPUT
IN
IN
DVR
/
VCR
DVR
/
VCR IN
TV
/
SAT IN
DVD
/
BD IN
AM
LOOP
DIGITAL IN
OPT
OPT
R
A
FM UNBAL
ANTENNA
DVR
/
VCR OUT
MONITOR
OUT
AUDIO VIDEO
IN
OUT
DIGITAL IN
COAX
(DVD
/
BD)
CD-R
/
TAP E
/
MD
(
ASSIGNABLE
)
(
ASSIGNABLE
)
S
P
E
A
K
E
R
S
SUB
WOOFER
PREOUT
(
DVD
/
BD
)
IN
1
1
1
(
TV
/
SAT
)
IN
OUT
2
(
TV
/
SAT
)
(
CD
)
2
(
ASSIGNABLE
)
HDMI IN
HDMI OUT
RL
DIGITAL AUDIO OUT
ANALOG AUDIO OUT
COAXIAL
OPTICAL
1
2
3
HDMI/DVI-compatible monitor
or flat screen TV
VSX-818V
HDMI/DVI-equipped component
(VSX-818V
model only)
