Chapter 4:
Controls and displays

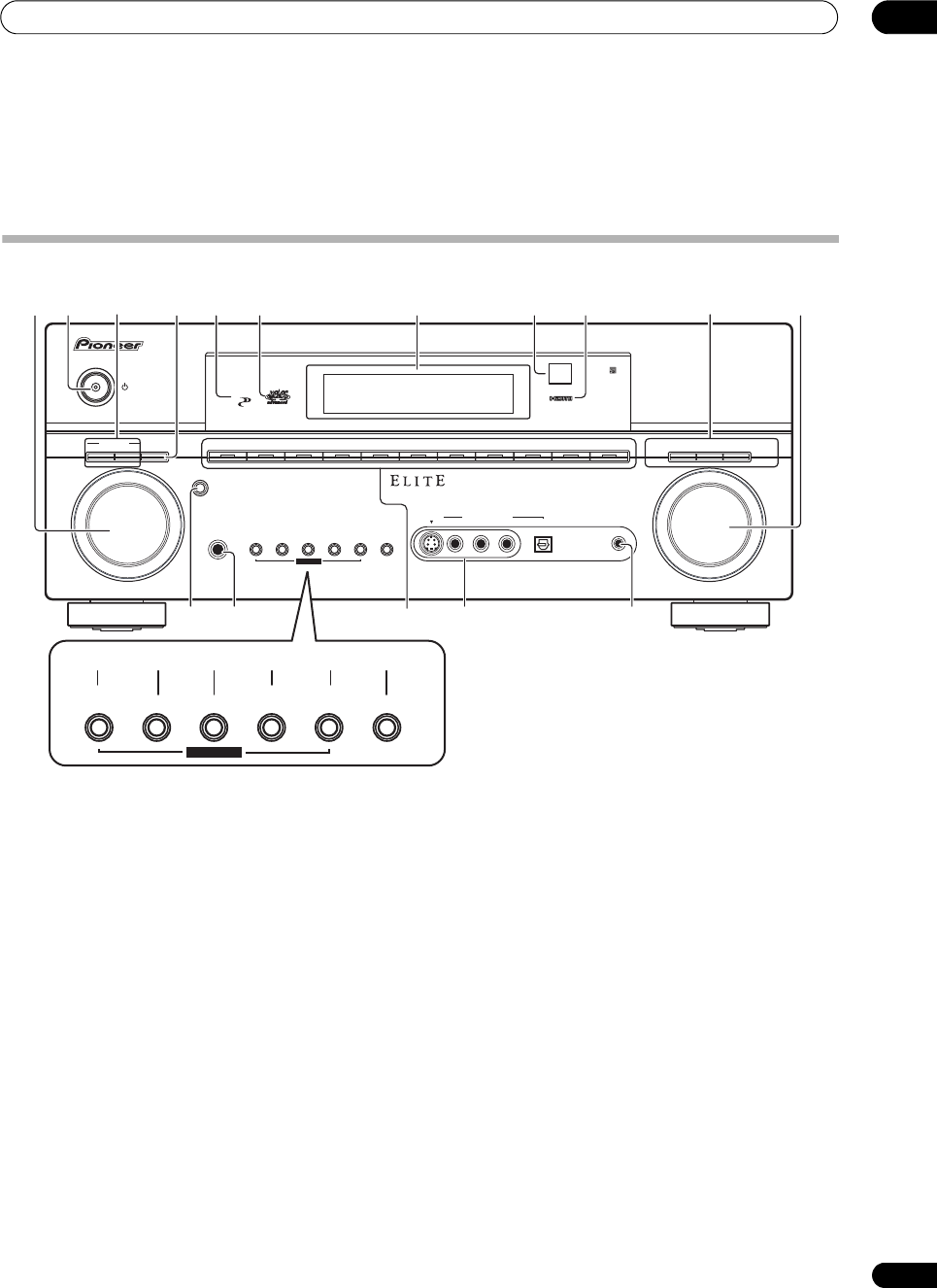

Front panel
1
MULTI JOG
dial
Use the MULTI JOG dial to select various settings and
menu options.
2
STANDBY/ON
Switches the receiver between on and standby. Power
indicator lights when the receiver is on.
3 MULTI ZONE controls
If you’ve made MULTI-ZONE connections (see MULTI-
ZONE listening on page 55) use these controls to control
the sub zone from the main zone (see Using the MULTI-
ZONE controls on page 56).
4 LISTENING MODE
Use with the MULTI JOG dial to select the various
listening modes (page 26).
5
PHASE CONTROL
indicator
Lights when Phase Control is switched on (page 10).
6 MCACC indicator
Lights when one of the MCACC presets (page 29) is
selected.
7 Character display
See Display on page 23.
8 Remote sensor
Receives the signals from the remote control (see
Operating range of remote control unit on page 22).
9 HDMI indicator
Blinks when connecting an HDMI-equipped component;
lights when the component is connected (page 52).
10 SIGNAL SELECT
Use to select an input signal (page 29).
SB ch PROCESSING – Selects the surround back
channel mode (page 29) or virtual surround back
mode (page 30).
MULTI CH IN – Press to select the multichannel
analog inputs (page 53).
11
MASTER VOLUME
dial
12
ENTER
13
PHONES
jack
Use to connect headphones. When the headphones are
connected, there is no sound output from the speakers.
14 Input source buttons
Press to select an input source.
MULTI JOG
MASTER
VOLUME
ENTER
VSX
-
91TXH
STANDBY/ON
PHONES
DVD /L D
PHASE
CONTROL
TV/ SAT DVR 1/DVR 2 VIDEO/GAME CD
CD
-
R/TAPE/MD
FM/AM
LISTENING
MODE
SYSTEM
SETUP
TUNING/
STATION
TUNER
EDIT
SPEAKERSRETURN
TONE
MULTI JOG
MULTI CH
IN
SB ch
PROCESSING
SIGNAL
SELECT
SIRIUSXM HDMI
iPod
MCACC
SETUP MIC
DIGITAL INAUDI O RLVIDEO
VIDEO/GAME
INPUT
S
-
VIDEO
ON/OFF
MULTI ZONE
CONTROL
SYSTEM
SETUP
TUNING/
STATION
TUNER
EDIT
SPEAKERSRETURN
TONE
MULTI JOG
1 72 65 8
12
1514 1613
91011
17 20 211918 22
43
