Controls and displays 04
17
En
English
Français
Deutsch
Nederlands
Italiano
Español
AUTO SURR/DIRECT
Switches between Auto surround mode
(Auto playback on page 22) and Stream
Direct playback. Stream Direct playback
bypasses the tone controls for the most
accurate reproduction of a source
(page 24).
6
MASTER VOLUME
7PHASE CONTROL
Press to switch on/off Phase Control (page 26).
8
DIALOGUE ENHANCEMENT
Use to make dialog stand out when watching
TV or a movie (page 26).
9 STANDBY/ON
10
PHONES
jack
Use to connect headphones (when connected,
there is no sound output from the speakers).
11 SOUND RETRIEVER
Press to restore CD quality sound to
compressed audio sources (page 27).
12
MIDNIGHT/LOUDNESS
Switches to Midnight/Loudness listening
(page 26).
13
VSB MODE
Press to switch on/off Virtual Surround Back
(VSB) mode (page 25).
14
TONE
Press this button to access the bass and
treble controls, which you can then adjust
with the MULTI JOG dial (page 26).
15 SIGNAL SELECT
Selects an input signal (page 25).
16
DIMMER
Dims or brightens the display.
17
TUNER EDIT
Memorizes/names stations for recall
(page 32).
18
QUICK SETUP
See Using the Quick Setup on page 7.
19 System Setup menu controls
SETUP
Use with the MULTI JOG dial to access
the System Setup menu (page 28).
RETURN
Confirms and exits the current menu.

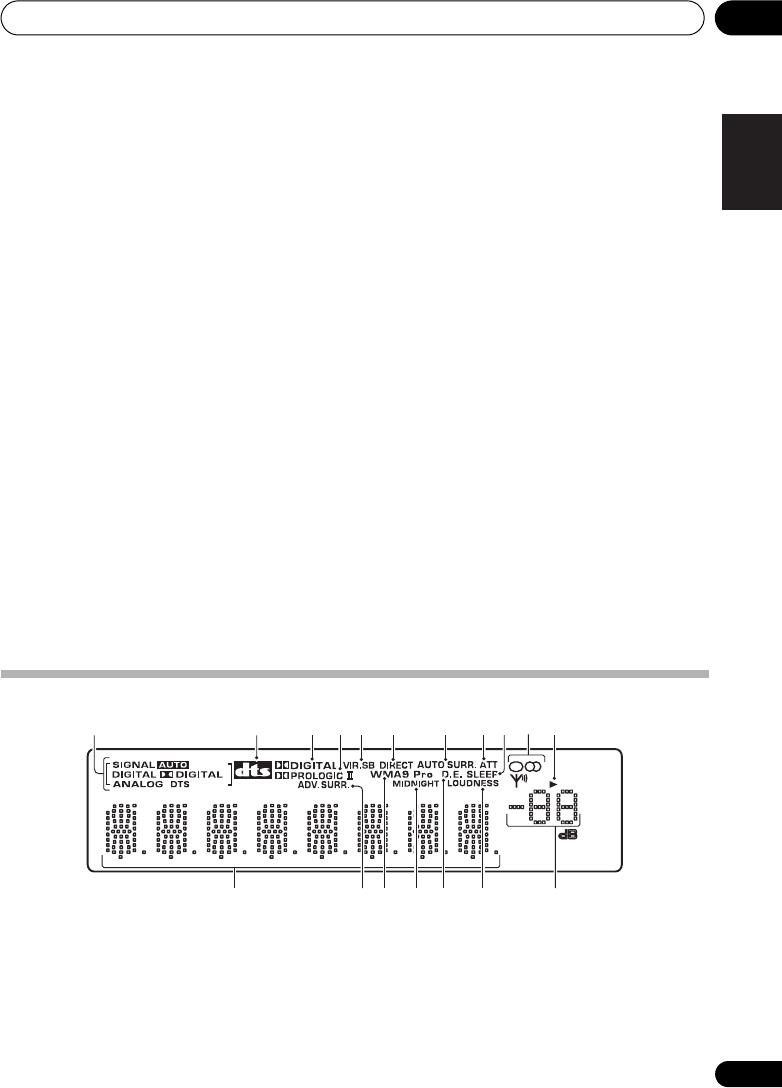

Display
1
SIGNAL SELECT
indicators
Lights to indicate the type of input signal
assigned for the current component:
AUTO
Lights when AUTO signal select is on.
SP
A
1234567118910
12
15 1614 17
13
18
