And both Port 2 and Port 3 are VLAN 1 members.

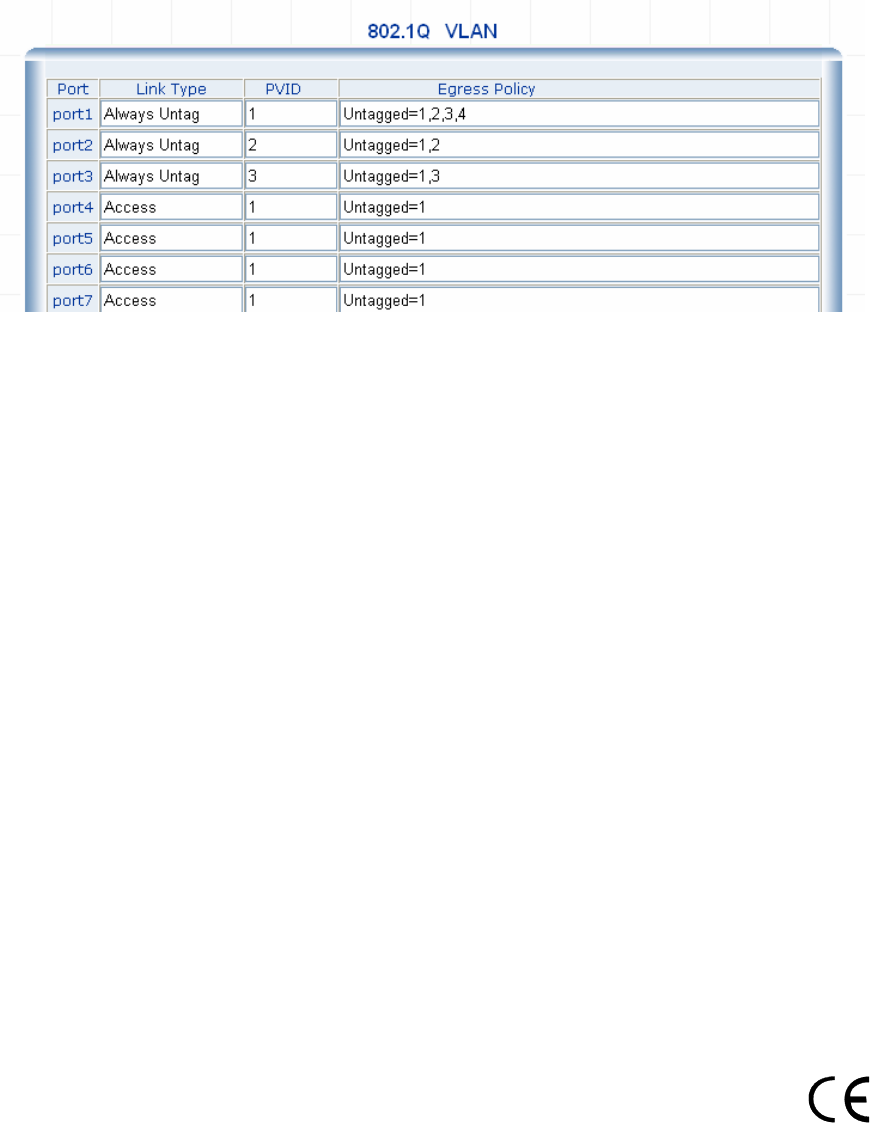

10. After properly configure the 802.1Q VLAN per port setting, it should be as the screen in Figure 7-6 appears.
Figure 7-6 Port 1, Port 2 and Port 3 VLAN configuration
Although Port 2 and Port 3 are VLAN 1 members, with different PVID setting, the two ports are not able to access
each other. But they all can access with the server/AP/Printer which connect to the Port 1 now.
Part No. 2081-A92310-001
