Control Panel

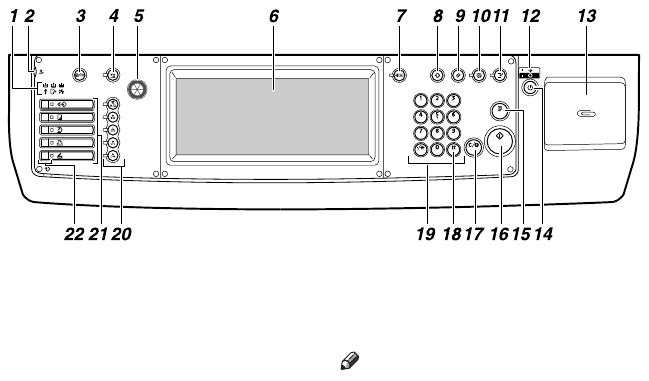

This illustration shows the control panel of a machine with options
fully installed.
1.
Indicators
Displays the status of the machine and in-
dicate errors.
d: Add Staple indicator.
D: Add Toner indicator.
B: Load Paper indicator.
L: Service Call indicator.
M: Open Cover indicator.
x: Misfeed indicator.
See "Control Panel", General Settings
Guide.
2.
Screen Contrast knob
Adjusts the brightness of the display panel.
3.
{
{{
{User Tools/Counter}
}}
} key
• User Tools
Press to change the default settings
and conditions to meet your require-
ments. See p.140 “Accessing User
Tools (Copier / Document Server Fea-
tures)”.
• Counter
Press to check or print the Counter
value. See “Counter”, General Settings
Guide.
4.
{
{{
{Adjust / Program Colour}
}}
}key
Use this key to adjust and register col-
ours. See p.93 “Colour Adjustment”.
Note
❒ When image quality is adjusted, the
lamp in the {
{{
{Adjust/Program Colour}
}}
}
key is lit.
5.
Colour Circle
Refer to this when adjusting colours. See
p.93 “Colour Adjustment”.
6.
Display panel
Shows operation status, error messages,
and function menus. See “Display Pan-
el”, General Settings Guide.
7.
{
{{
{Check Modes}
}}
} key
Press to check the entered copy job set-
tings.
8.
{
{{
{Program}
}}
} key
Press to store or recall a program. See
p.91 “Programs”.
9.
{
{{
{Clear Modes}
}}
} key
Press to clear previously entered copy job
settings.
AFU021S
