2.2.3 Failsafe Output Wiring
The Failsafe output relay is provided to signal critical error conditions that may occur on the unit.
The contacts are energized upon power up of the unit and remain energized until an alarm
condition or power loss occurs. The behavior of the failsafe relay is configurable via the
RuggedSwitch Operating System. Consult the RuggedSwitch Users Guide for details.

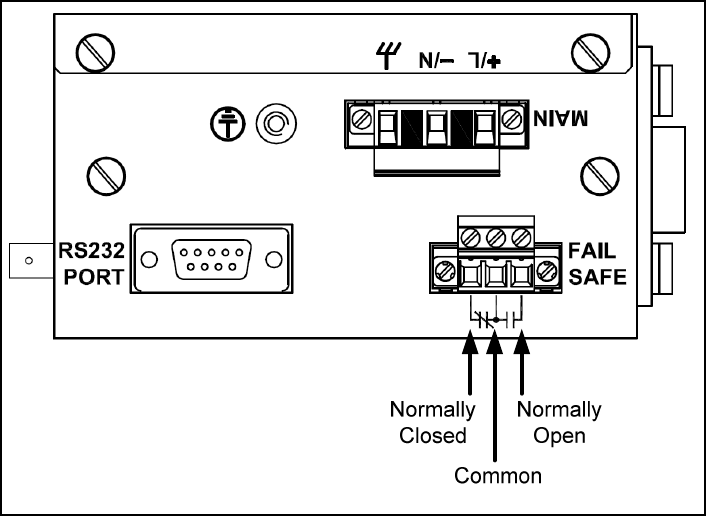

Figure 6 - Failsafe Output Relay
