PowerLogic
TM
Series EM4000 930-134-01-A.00
Installation Guide 11/2013
20 ©2013 Schneider Electric All Rights Reserved

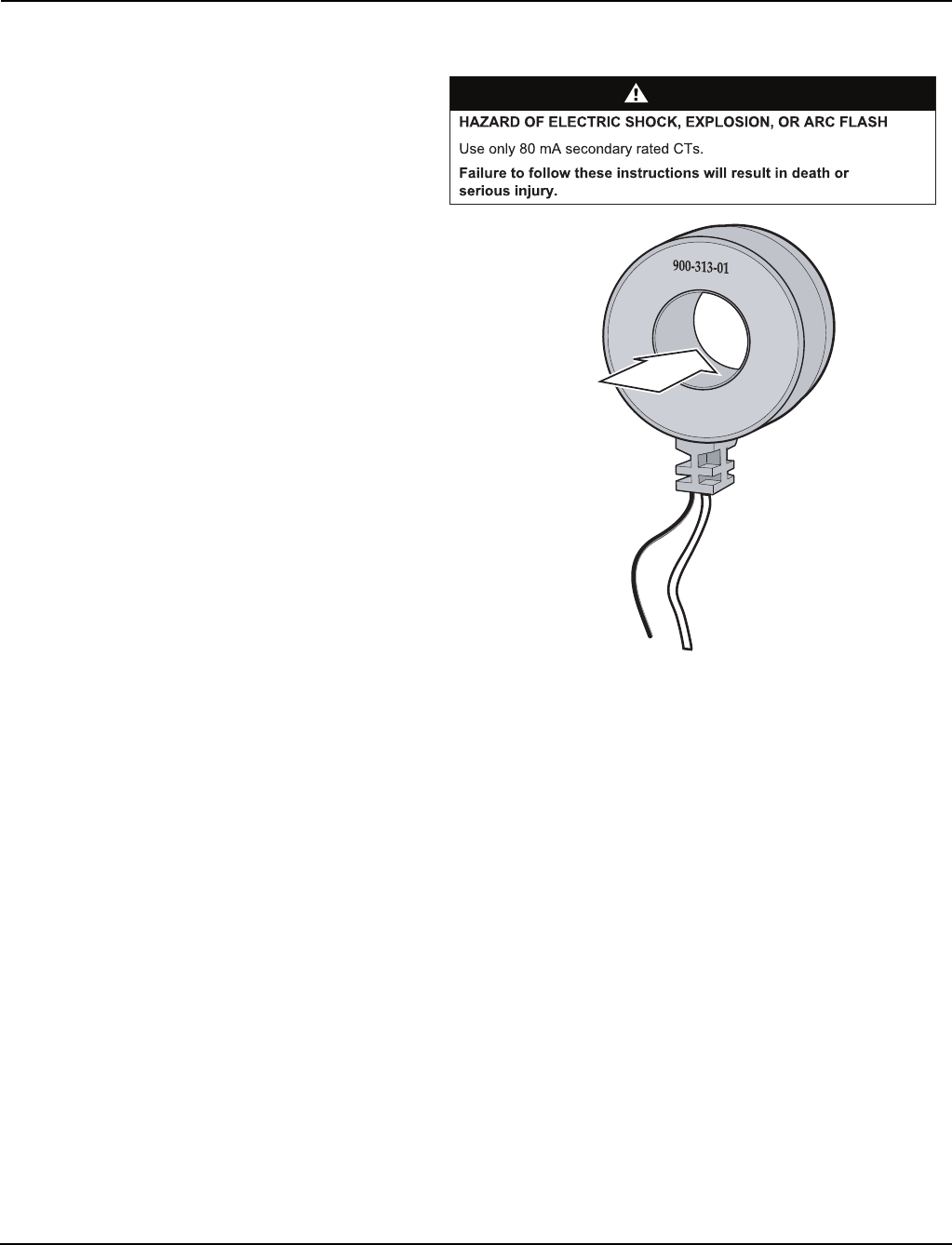

Figure 11: PowerLogic EM4080 mA current transformer
Installing the CTs on the PowerLogic EM4033 and PowerLogic EM4080
Do not apply power until you have made these connections and followed all of the
instructions below:
Connect all CTs to the appropriate circuits
Connect the CTs to the cables
Connect the cables to the PowerLogic EM4000 meter
To install the mA current transformers on the PowerLogic EM4080 or the 0.333V
current transformers on the PowerLogic EM4033, follow these steps:
2
3
1
5
4
H1
Legend:
1 Source
2 Energy ow
3 Load
4 X1
5 X2
DANGER
