10
Getting Started
S VIDEO
VIDEO
AUDIO
INPUT
L
R
DC IN 10.5V
WOOFER
OUT
R
–
AUDIO
–
L VIDEO S
–
VIDEO
1
2
OPTICAL COAXIAL
PCM/DTS/
DOLBY DIGITAL (AC
–
3)
/MPEG
LINE OUT

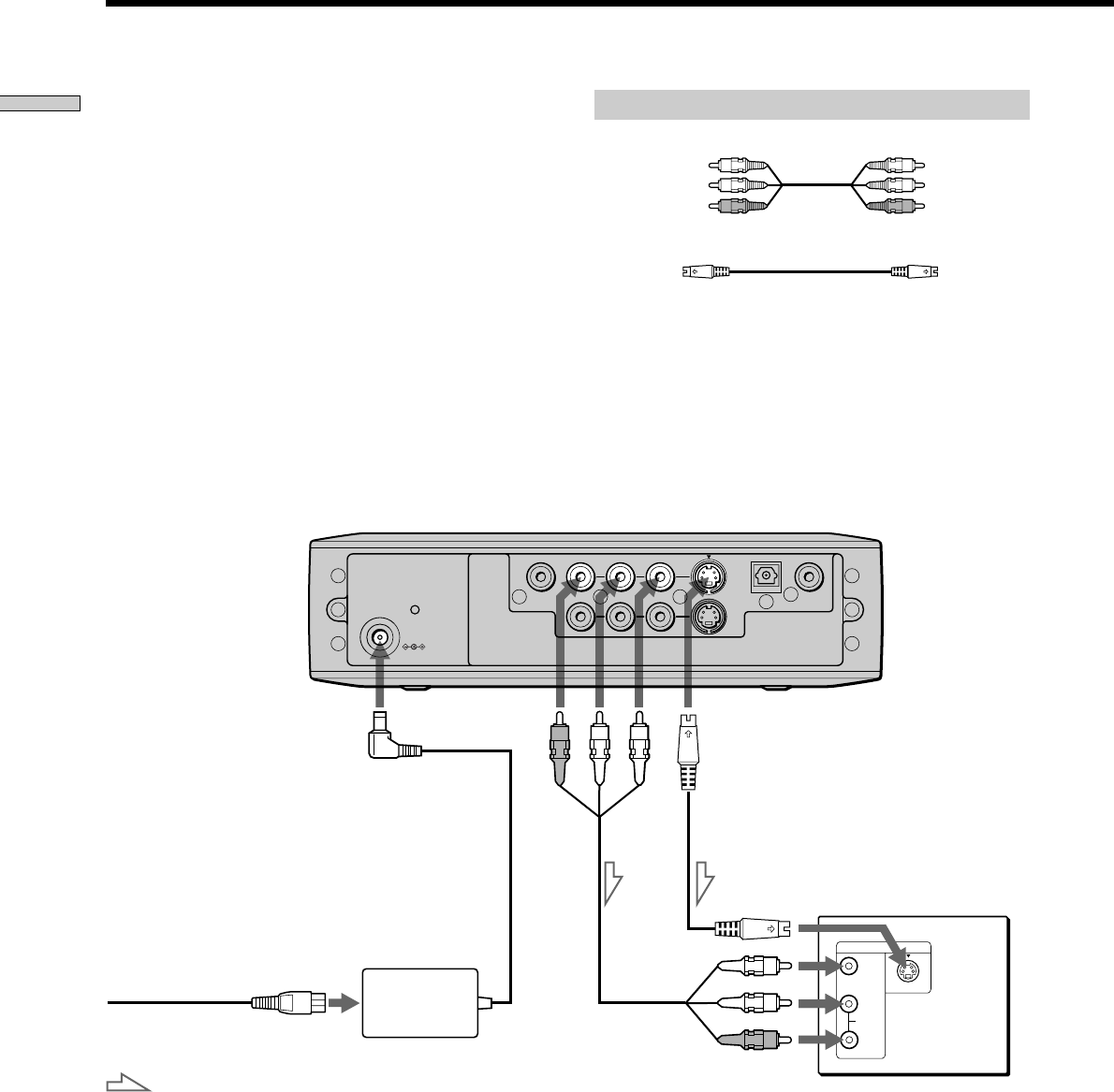

TV Hookups
CD/DVD player
AC power adaptor
(supplied)
To an AC outlet
: Signal flow
This connection is for listening to the sound through TV
speakers (2ch – L, R). Refer to the instructions supplied
with the component to be connected.
Set “SUBWOOFER” in “SPEAKER SETUP” to “NONE” in
the setup display (page 53).
Yellow
White (L)
Red (R)
Yellow
White (L)
Red (R)
TV
Required cords
Audio/video connecting cord (supplied) (1)
S video cord (supplied) (1)
When connecting the cords, be sure to match the color-coded
cord to the appropriate jacks on the components: Yellow (video)
to Yellow, Red (right) to Red and White (left) to White. Be sure to
make connections firmly to avoid hum and noise.
If your TV has an S video input connector, connect the
component via the S-VIDEO connector using the S video cord.
You will get a better picture.
Refer to the instructions supplied with the TV to be connected.
To LINE OUT
(S-VIDEO)
To S VIDEO
input
To LINE OUT
(AUDIO, VIDEO)
AC power cord (supplied)
