Additional Information

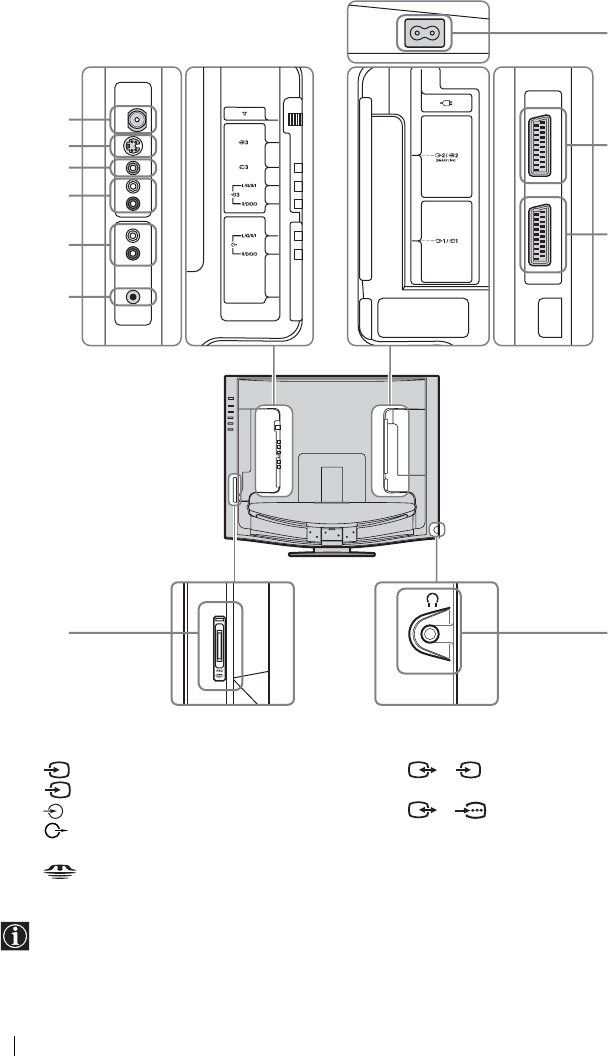

A Connect the supplied coaxial cable.
B 3: AV3 S video input jack
C 3: AV3 Video input jack
D 3: AV3 Audio input jacks
E : Audio output jacks
F 0: Auto Startup button
G : “Memory Stick” slot
(KLV-23HR2 only)
H Connect the supplied mains lead.
I 2/ 2: AV2 Scart connector
(SmartLink)
J 1/ 1: AV1 Scart connector
K i: Headphones jack
0
A
B
C
D
E
H
I
J
K
G
F
S S
To avoid a noisy picture, do not connect external equipment to connectors B and C at the same
time.
Even if headphones are connected to the TV, you can hear the sound from the TV speakers.
Note that some Scart leads may not fit into the connector on the TV.
