9

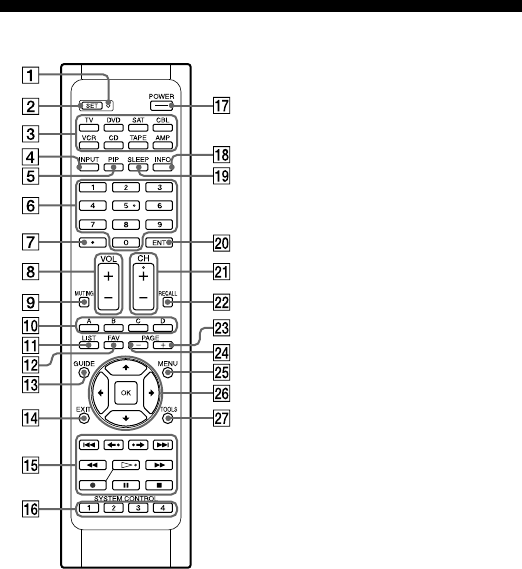

Location of Controls
1 SET indicator
2 SET button
3 Component Select buttons
Light or flash during operation.
4 INPUT button
5 PIP button
6 Number buttons
7 DOT button
8 VOL +/– buttons*
9 MUTING button*
q; A, B, C, D button
qa LIST button
qs FAV button
qd GUIDE button
qf EXIT button
qg Player Control buttons
qh SYSTEM CONTROL buttons
qj POWER button
qk INFO button
ql SLEEP button
w; ENT (enter) button
wa CH (channel) +/– buttons
ws RECALL button
wd PAGE + button
wf PAGE – button
wg MENU button
wh Cursor Control buttons
wj TOOLS button
About tactile dots
The number 5 button, the G button and CH + button each have a tactile dot for ease
of use.
* Note on the VOL +/– and MUTING buttons
The Commander controls or mutes the TV’s volume when you select a visual
component. The Commander controls or mutes the amplifier’s volume when you
select an audio component. You can change this setting (page 25).
Note
The function of the control buttons varies depending on settings/operating modes.
The “Table of Preset Functions” (page 39) shows how the Commander generally
operates for each component in the factory preset mode.
