5
Hooking Up the System
DIGITAL
PHONO
ANTENNA
TV/DBS LD/DVD
VIDEO 2 VIDEO 1 MONITOR
CD DAT/MD TAPE
PRE OUT
IR OUT S-LINK
IMPEDANCE
SELECTOR
FRONT SPEAKERS
CENTER SPEAKER
REAR SPEAKERS
AC OUTLET
Speaker System Hookups (8)

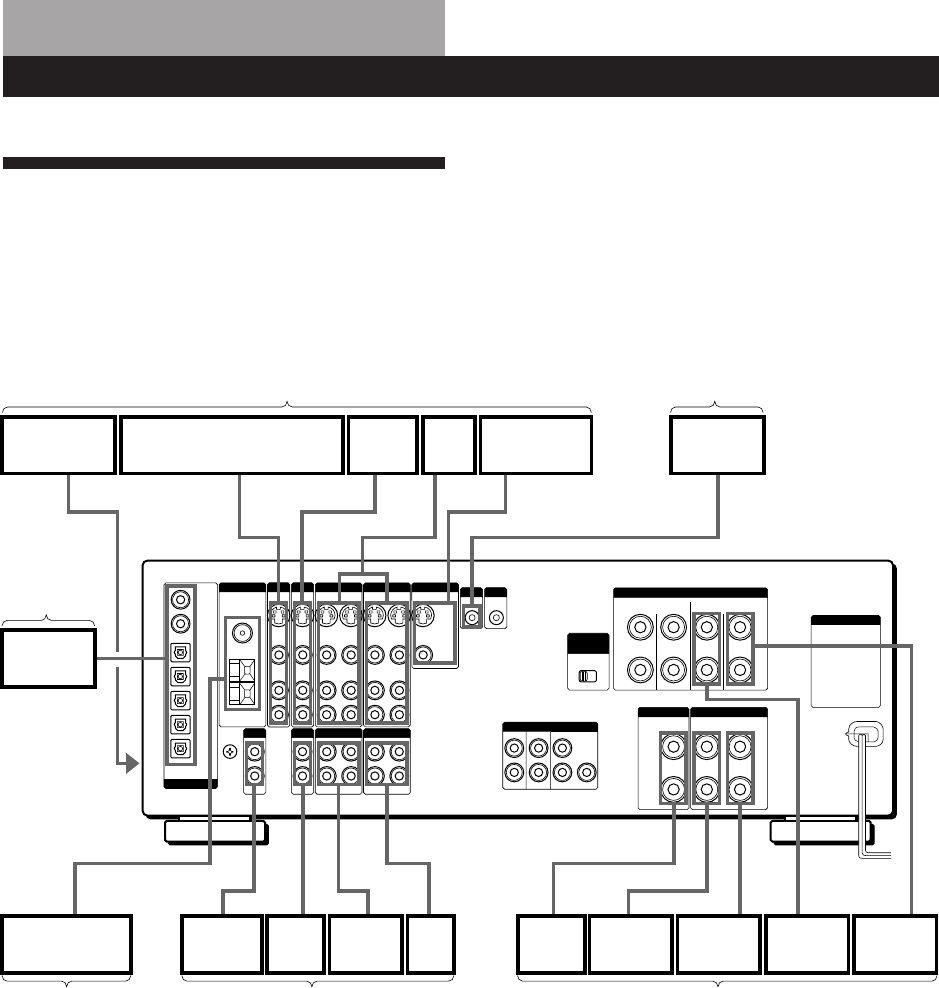

Hookup Overview
The receiver allows you to connect and control the
following audio/video components. For details on
connection of each component, see the pages in
parentheses.
Infrared (IR) Repeater
Hookups (6)
TV/VCR Hookups (11)
Digital
Component
Hookups (12)
Antenna Hookups (6) Audio Component Hookups (7)
IR Repeater
Video camera/
video game
TV tuner/Digital Broadcasting
Satellites (DBS) receiver*
LD/DVD
player
VCR TV/MONITOR
DVD player
(etc.)
AM/FM antenna
CD
player
DAT/MD
deck
Tape
deck
Front
speaker (R)
Front
speaker (L)
Rear
speaker (R)
Rear
speaker (L)
Center
speaker
Turntable
To the
front panel
Before you get started
• Check that you received the following items with the
receiver:
- FM wire antenna (1)
- AM loop antenna (1)
- Remote commander (remote) (1)
(remote for USA and Canada: RM-H501)
(remote for Australia: RM-VR101)
- Size AA (R6) batteries (2)
- IR repeater (1)
• Turn off the power to all components before making
any connections.
• Do not connect the AC power cords until all of the
connections are completed.
• Be sure to make connections firmly to avoid hum
and noise.
