CDX-M620/M670
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
ACCESSORIES & PACKING MATERIALS
********************************
1-476-546-11 REMOTE COMMANDER (RM-X111) (AEP,UK,E)
1-476-546-21 REMOTE COMMANDER (RM-X110) (US)
3-230-446-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH,
SPANISH) (US)
3-230-447-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH,SPANISH) (US)
3-230-448-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH,
SWEDISH,PORTUGUESE,GREEK,
RUSSIAN) (AEP,UK,E)
3-230-449-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
GERMAN,FRENCH,ITALIAN,
DUTCH) (AEP,UK,E)
3-230-549-01 LID, BATTERY CASE (for RM-X110/X111)
X-3378-390-1 CASE ASSY (for FRONT PANEL)
*************************************************************
**************
HARDWARE LIST
**************
#1 7-685-790-09 SCREW +PTT 2.6X4 (S)
#2 7-685-792-09 SCREW +PTT 2.6X6 (S)
#3 7-685-794-09 SCREW +PTT 2.6X10 (S)
#4 7-627-553-28 SCREW, PRECISION +P 2X2.5
#5 7-624-102-04 STOP RING 1.5, TYPE -E
#6 7-627-552-88 SCREW, PRECISION +P 1.7X2.2
#7 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT
#8 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE3
#9 7-628-253-00 SCREW, SPECIAL
#10 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE3
#11 7-627-850-28 SCREW, PRECISION +P 1.4X3
#12 7-621-255-25 SCREW +P 2X4
*************************************************************
PARTS FOR INSTALLATION AND CONNECTIONS
**************************************

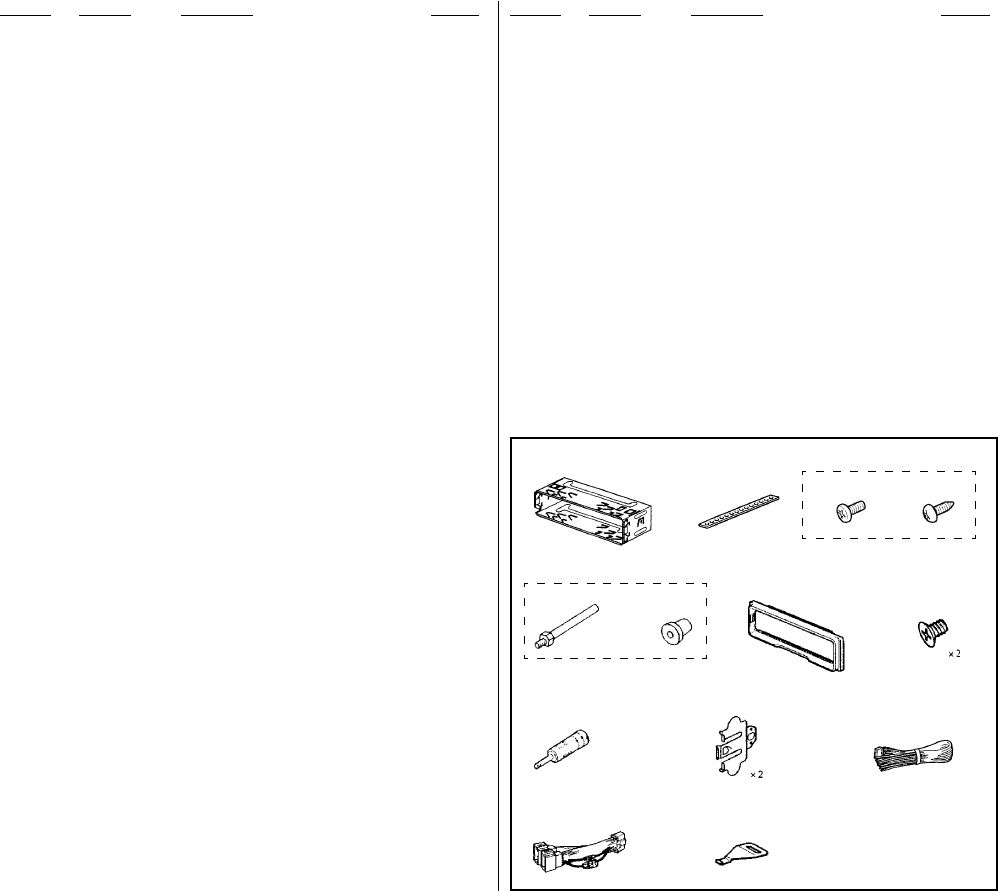

401 3-014-370-21 FRAME, FITTING
402 3-916-012-01 BRACKET (ND), FITTING ASSIST (US)
403 7-682-160-01 SCREW +P 4X6 (US)
404 X-3368-725-1 SCREW ASSY, FITTING (US)
405 3-386-828-01 SCREW, FITTING (AEP,UK,E)
406 3-349-410-01 BUSHING (AEP,UK,E)
407 X-3366-405-1 SCREW ASSY (EXP), FITTING (AEP,UK,E)
408 3-230-445-01 COLLAR
409 3-934-325-01 SCREW (+K 5X8 TP)
410 1-465-459-21 ADAPTOR, ANTENNA (AEP,UK,E)
411 3-030-929-01 SPRING, FITTING
412 1-776-207-72 CORD (WITH CONNECTOR) (POWER) (US)
413 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(AEP,UK,E)
414 3-231-993-01 KEY (01)
