Replacement Procedures
10. Remove the following screws securing the LCD support (LCD unit side) and remove
the LCD supports from the LCD unit.
M2.0x2.5 BINK screw x4

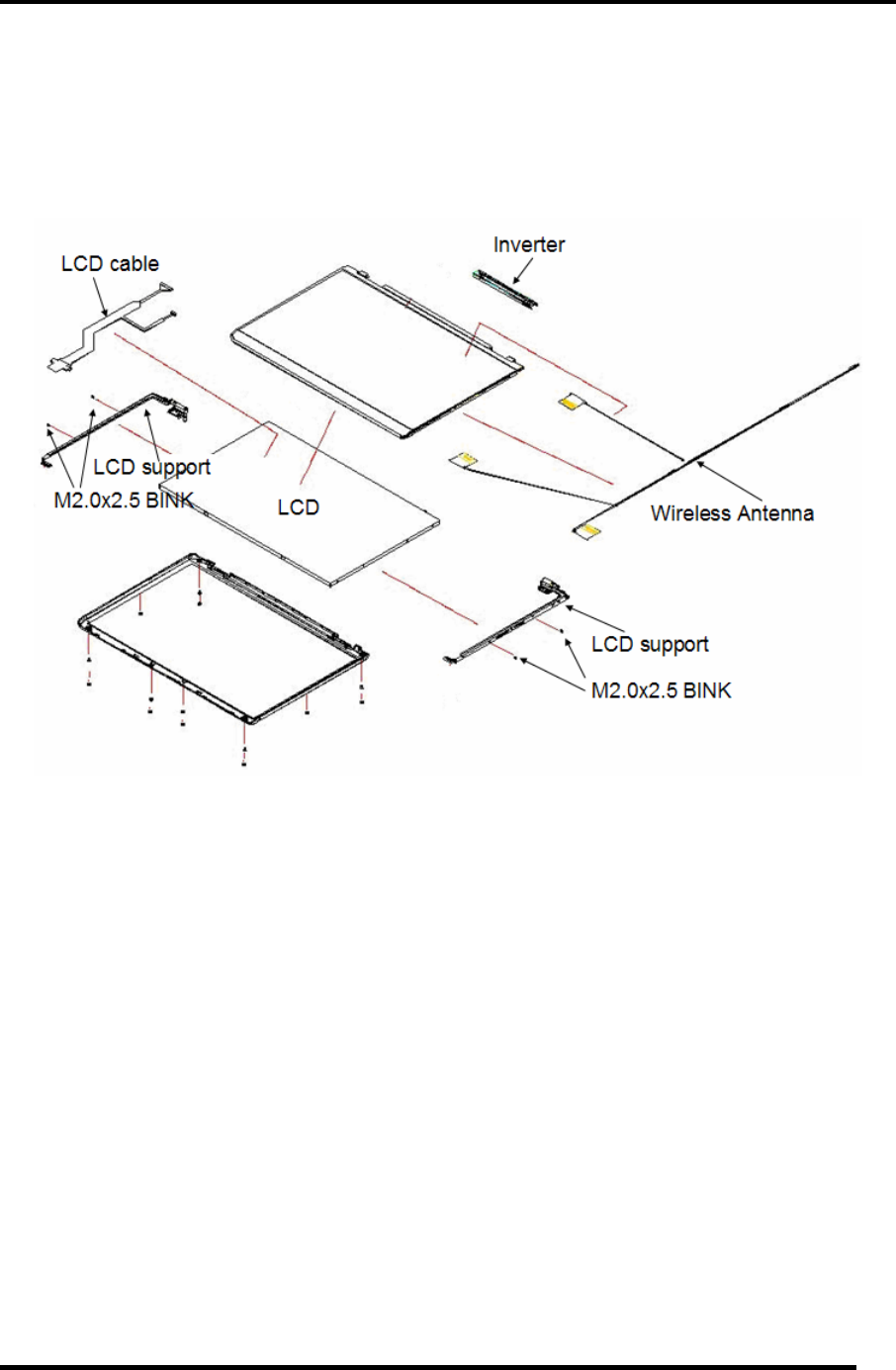

Figure 4-31 Remove the LCD supports
Satellite U400/Satellite Pro U400/PORTEGE M800 Maintenance Manual 48
