4 Replacement Procedures 4.25 Fluorescent Lamp
5. Fixing PCBs and bezel with screws
1) Tighten the left side with the screws in order shown in the figure below.
2) Tighten the right side with the screws in order shown in the figure below.
NOTE: 1) Tighten the screws in order. Make sure there is no floating of screw.
2) The screw tightening torque shall be 0.147mN
m (1.5kgf
cm).
3) Use a Philips screwdriver with type 0 bit.

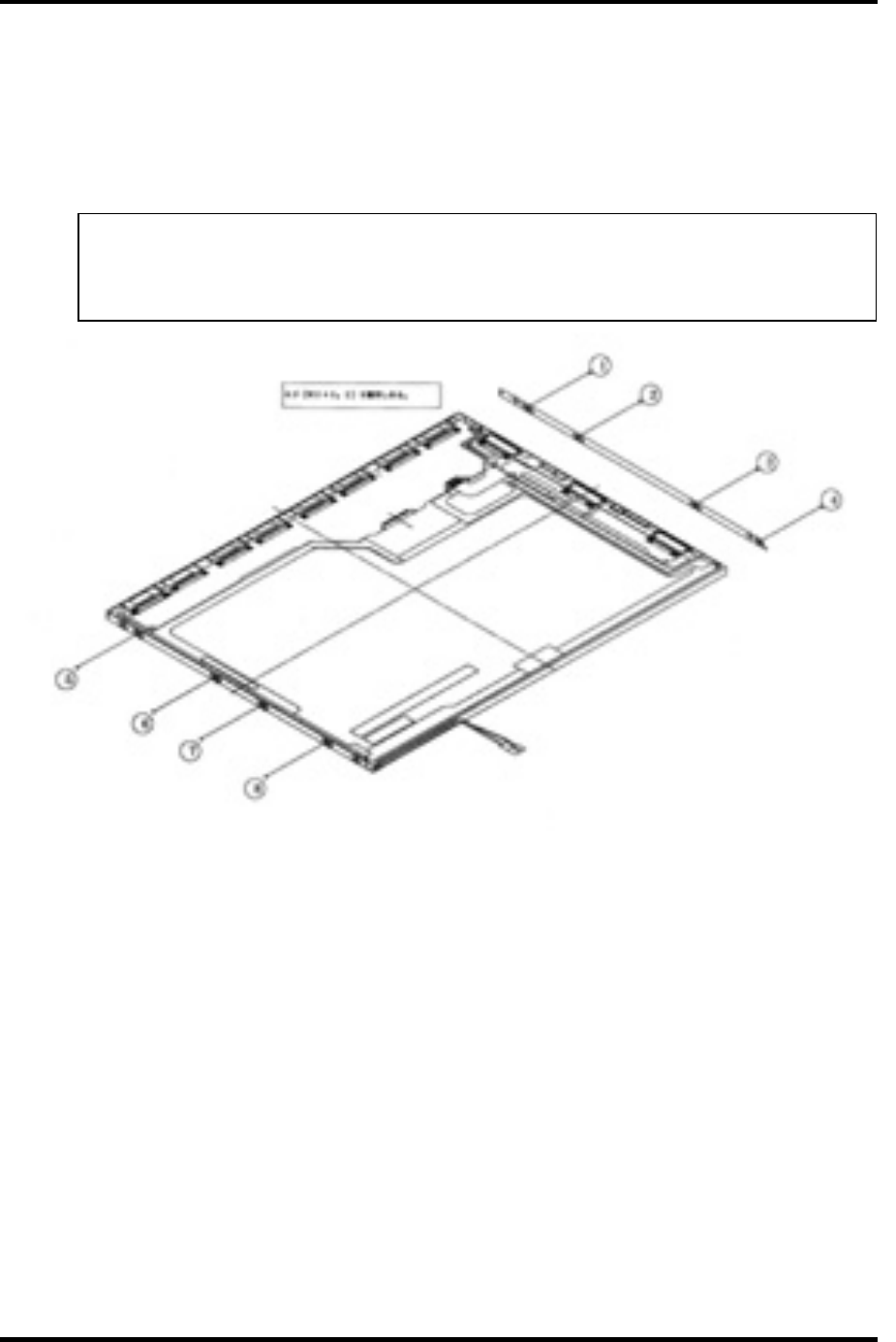

Figure 4-60 Replacing TOSHIBA fluorescent lamp (XGA) (10)
