(Continued)

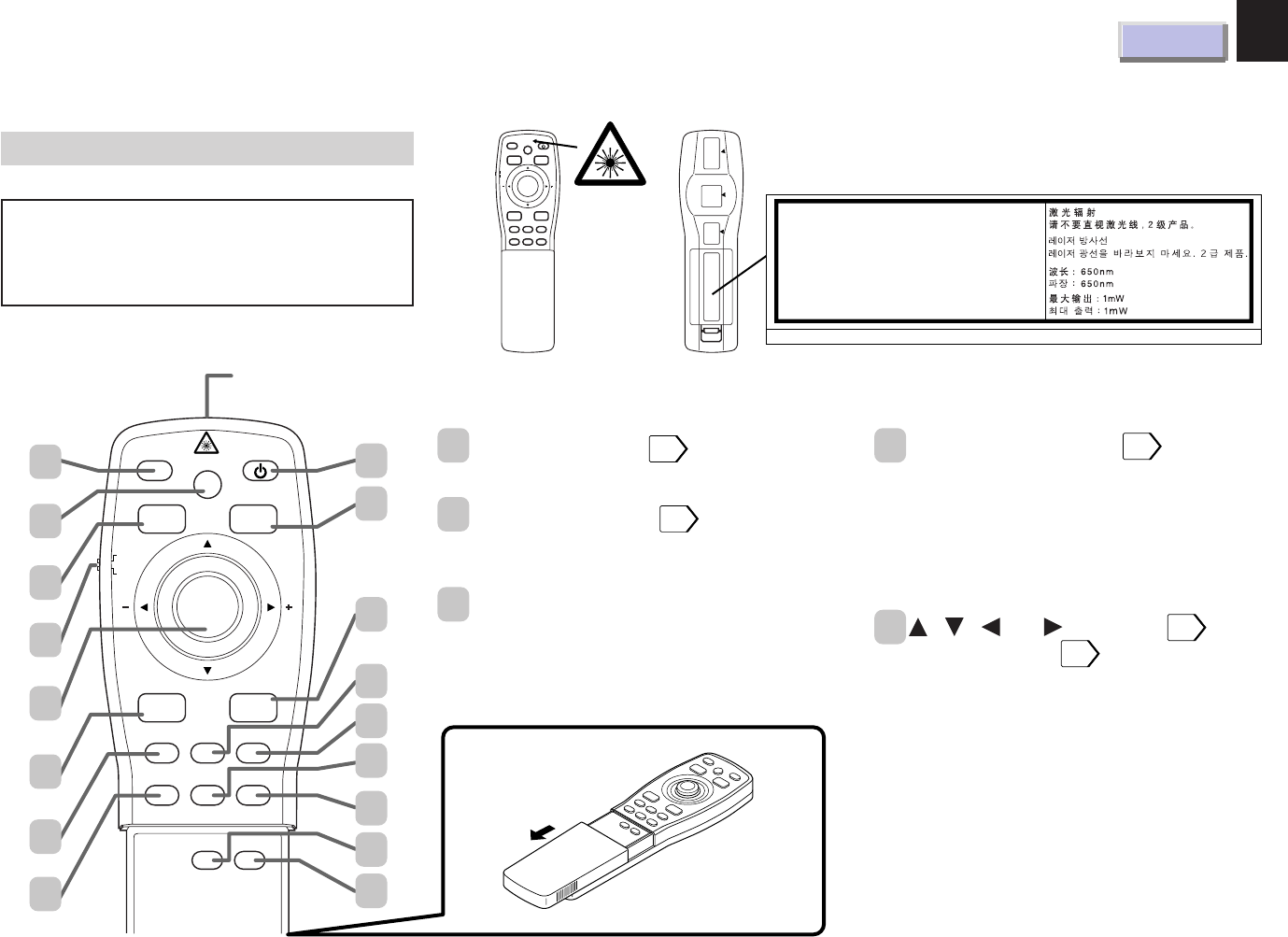

Remote control
* Functions when the POINTER/PJ selector is
set to “POINTER”.
AUTO SET button
23
To adjust the image automaticcally.
KEYSTONE button
22
To correct the keystone distortion of the
picture automatically.
MARKER button
To display a marker on the screen.
Each time the button is pressed, the
marker changes the shape, and finally
disappears.
POINTER/PJ selector
26
To switch the operation modes of the
remote control.
POINTER: To operate a computer. (The
supplied REMOTE MOUSE RECEIVER
should be connected to the computer.)
PJ: To operate the projector.
, , (–), (+) button
28
/
Pointer control*
26
• To select items or adjust values on the
menu.
• To shift a picture after changing its size
with the RESIZE button.
• To move the marker displayed with the
MARKER button.
• To move the pointer of the computer.*
• To substitute for the L-CLICK button by
pressing the center.*
(Continued)
Caution - use of controls or adjustments or
performance of procedures other than those
specified herein may result in hazardous
radiation exposure.
4
5
3
2
1
Laser emission part
17
16
15
14
13
12
11
10
9
1
2
3
4
5
6
7
8
AUTO SET
POINTER
PJ
MARKER
LASER
MENU ENTER
KEYSTONE
ON/STANDBY
R-CLICKL-CLICK
VIDEOCAMERARGB
RESETFREEZERESIZE
LASER RADIATION
DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT
LASER–STRAHLUNG
NICHT IN DEN STRAHL BLICKEN. LASER KLASSE 2 PRODUKT
RAYONNEMENT LASER
NE PAS REGARDER DANS LE FAISCEAU
APPAREIL A LASER DE CLASSE 2
WAVE LENGTH
(WELLENLÄNGE. LONGUEUR D'ONDE): 650nm
MAX OUTPUT
(MAX AUSGANGSLEISTUNG. PUISSANCE MAXIMA): 1mW
IEC60825–1 A1;1997REMOTE CONTROL MODEL CT-90107
Location of the labels
REAR
