13
L2 Managed Switch

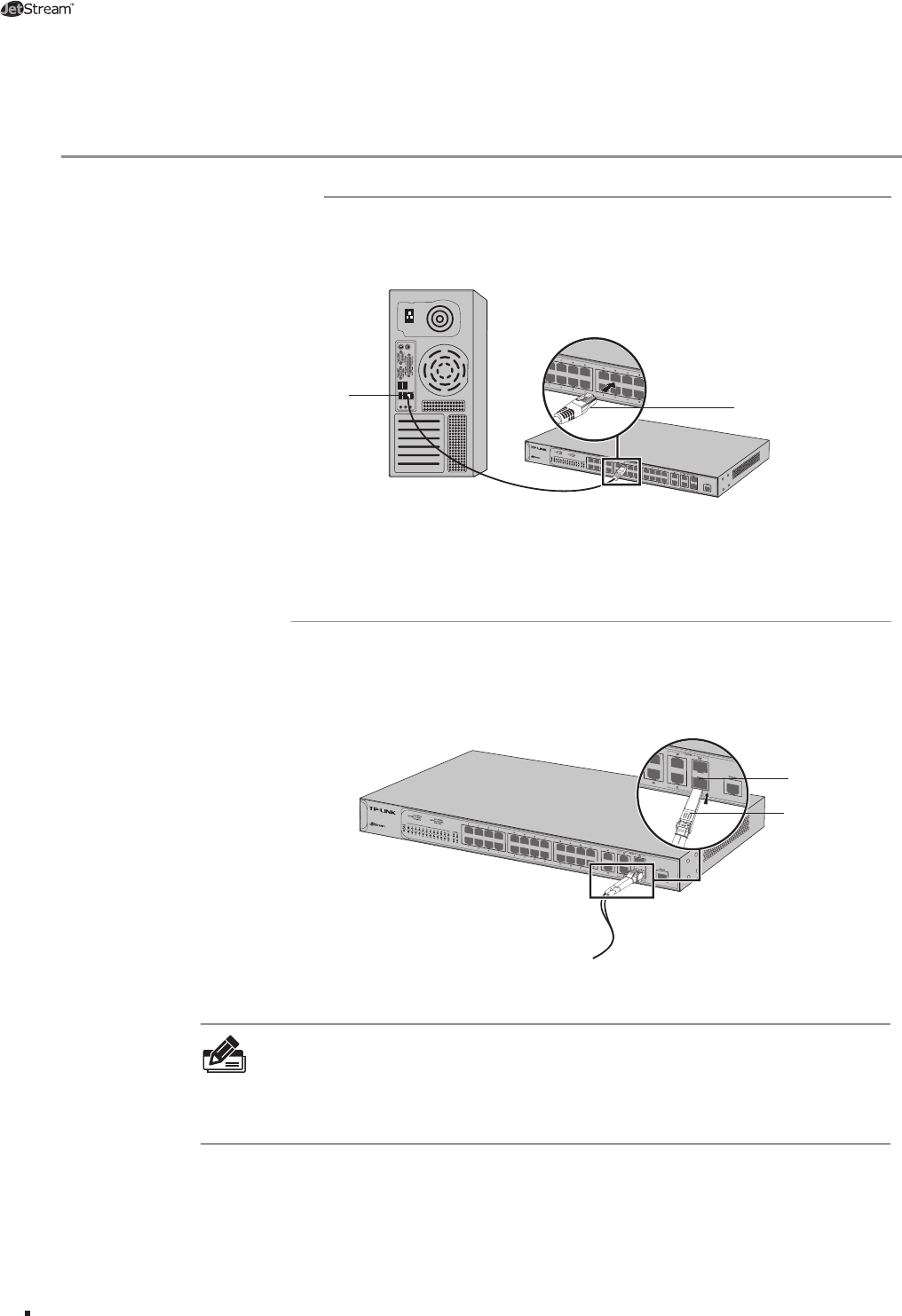

Connection


Connect the Ethernet ports of the Switch to the network devices by RJ45 cable as the
following figure shown.
L2 Managed Switch
TL-SL3428
RJ45 Cable
RJ45 Port
Connecting the RJ45 PortFigure 4-1

Connect the SFP port to a SFP module.
For TL-SL3428, if an SFP transceiver (purchased separately) is installed in a slot and has
a valid link on the port, the associated RJ45 port will be disabled and cannot be used.
L2 Managed Switch
TL-SL3428
SFP Port
Inserting the SFP ModuleFigure 4-2
Note:
TL-SL3428 supports 100/1000Base-FX SFP module at full-duplex mode. When
using a SFP module, you need log on to the GUI of the Switch and configure the
corresponding Speed and Duplex mode on Switching
Port
Port Config page.
TL-SL3452 only supports 1000Base-X SFP module at full-duplex mode.
SFP Module
