Phone Overview
14

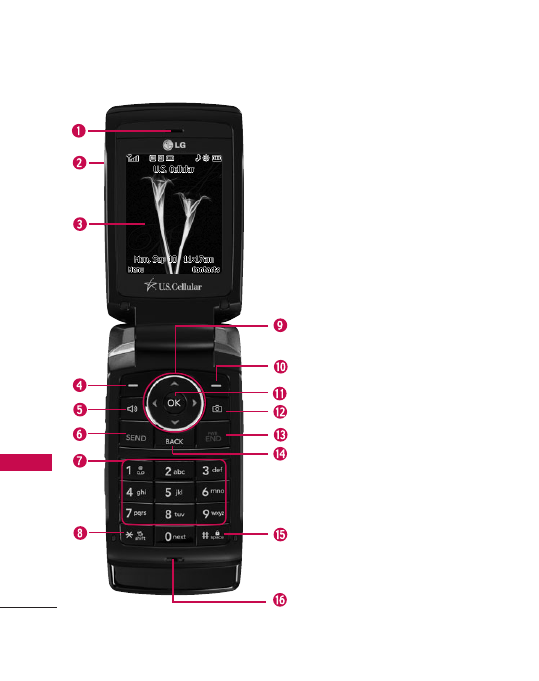

Phone Overview
1. Earpiece Lets you hear the caller and automated
alerts and prompts.
2. Flip Open to answer an incoming call and close to
end the call.
3. LCD Screen Displays messages and indicator icons.
When the flip is open, Power Save mode
automatically dims the screen and then darkens it if
no keys are pressed.
4. Left Soft Key Displays the phone's main menu from
the standby mode. It also lets you select Soft Key
actions corresponding to the bottom left line on the
display screen.
5. Speakerphone Key Use to set the speakerphone
mode.
6. SEND Key Use to place or answer calls.
7. Alphanumeric Keypad Use to enter numbers and
characters and select menu items.
8.
Vibrate Mode Key
Use to set the vibrate mode
(from standby mode press and hold for about 3
seconds).
9. Navigation Key Scrolls through the phone's menu
options and also acts as a quick access to Bluetooth,
Calendar, easyedge
SM
and Message from standby
mode.
10. Right Soft Key Displays the Contacts list from
standby mode. It also lets you select Soft Key
actions corresponding to the bottom right line on
the display screen.
11.
OK Key
Selects the function displayed at the
bottom of the LCD between the Left and Right Soft
Key functions.
12. Camera Key
Use for quick access to Take Photo
menu.
13. END/PWR Key Use to end a call. Press and hold
this key for two seconds to turn your phone on or
off. Also use to return to standby mode while in the
main menu.
14. BACK Key Deletes characters from the display in
text entry mode. When in a menu, press Back key
to return to the previous menu or screen, one level
at a time.
15.
Lock Mode Key
Use to lock the phone (from
standby mode press and hold for about 3
seconds).
16. Microphone Lets callers hear you.
