Configuring the RAS with a Web browser 42
Model LRA2900A RAS Getting Started Guide 3 • Configuring the RAS for operation
Configuring line settings and signaling for E1
1. Select T1/E1 Link on the Configuration Menu. The T1/E1 Link Activity window appears (see figure 27).

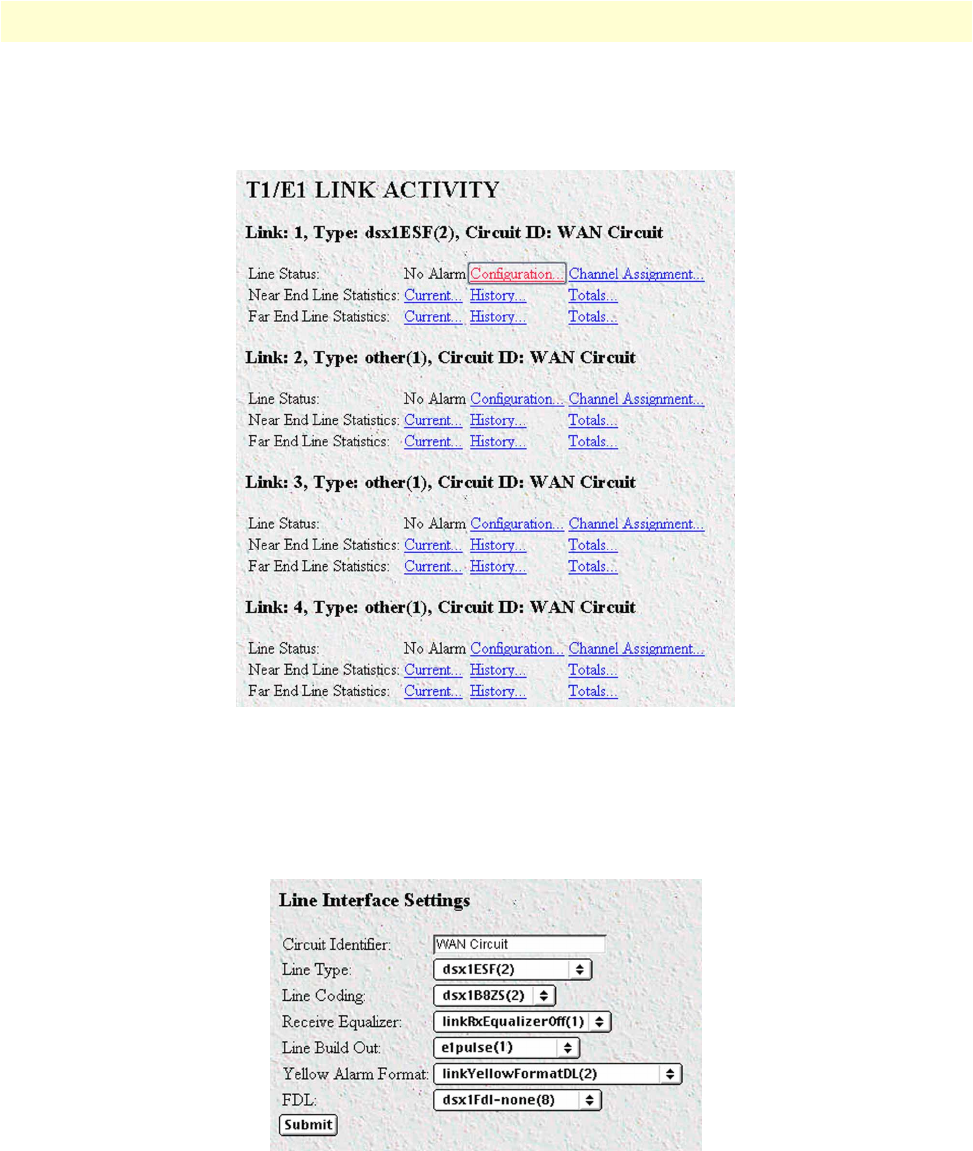

Figure 27. T1/E1 Link Activity window
2. Link: 1 corresponds to Line 1 on the RAS. This is the primary link for dial-in callers. Under Link 1, Click
on
Configuration then Modify. The Line Interface Settings section of the WAN Circuit Configuration
window appears (see figure 28).
Figure 28. WAN Circuit Configuration window, Line Interface Settings section
