Setting the line signaling for an E1/R2 line
Do the following:
1. Scroll down the
WAN Circuit Configuration window, until the Signaling Settings section appears (see
figure 29).
2. Click on the
Signal Mode pop-up menu and choose bitOriented(3).
3. Click on
Submit Query.
4. Select
MFR Version 2 on the Configuration Menu, then click on Modify. The MFR Version 2 Modify win-
dow appears (see figure 30).

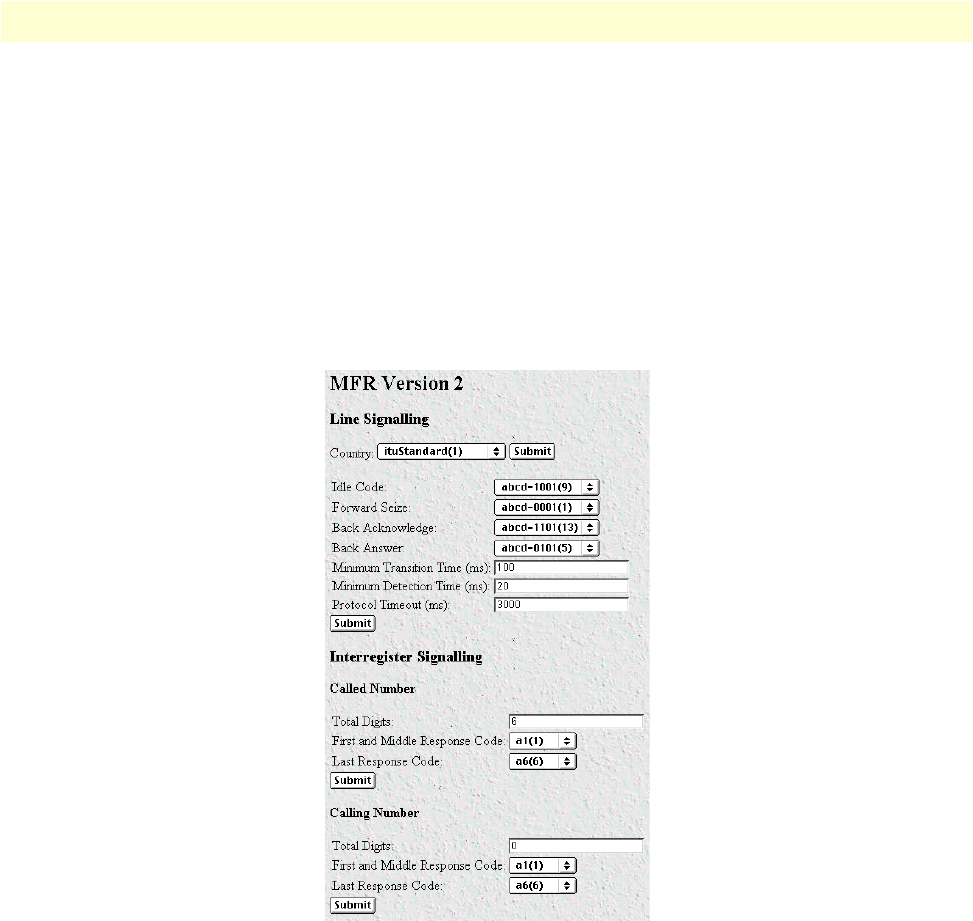

Figure 30. MFR Version 2 Modify window
5. Click on the Country pop-up menu. If your country is not available, select ituStandard(1).
6. Click on
Submit.
7. Scroll down to the
Interregister signaling section.
8. Type the Called Number Total Digits in the box provided. This setting tells the RAS how many digits to
expect from the phone company. The called Number is the number a user dials to call into the RAS.
9. Set the First/Middle and Last Response Codes. These are the codes the switch expects after each digit sent
by the switch.
10. Click on
Submit.
